microtome

1. Dual-purpose knife holder (0-15° adjustable) for wide & narrow blades 2. Sectioning: 0μm-999.9μm (0.1μm increments); Trimming: 0μm-999.9μm 3. Quick-freeze stage: -65°C to RT, with a minimum graduation value of 1°C; 6 semiconductor stations 4. One-key position memory + auto-alignment function 5. UVC sterilization; multi-user mode; timing & sleep mode 6. Specimen retraction: 0-999.9um (0.1um increments) 7. CE, ISO certified; 1 year and whole lifetime technical support; OEM support available

1. SECOP dual-compressor with closed freezer cover plate for efficient cooling 2. Chamber: 10°C to -60°C; Peltier shelf: -60°C in 15min 3. Sectioning: 0.5μm-100μm with intelligent temperature control 4. 10-inch color LCD screen with UV sterilization 5. 24 freezing stations + 8 Peltier points; max specimen 55mm × 80mm 6. Specimen retraction: 0-100um (5um increments) 7. CE, ISO 13485 certified, 1 year and whole lifetime technical support

1. German linear guide rails and Japanese precision-machined components for smooth operation 2. Section thickness: 0-60 μm with ±5% accuracy 3. Nano-silver antibacterial top panel — antimicrobial, corrosion-resistant, easy to clean 4. Specimen orientation: XY ±8°, 360° rotation, 35 mm horizontal stroke 5. Quick-change clamp: cassette clamp and paraffin block clamp switching 6. Specimen retraction: 20um 7. CE / ISO 13485 certified, 1-year warranty with lifetime technical support

1. Fully automatic operation with adjustable cutting speed 0-300 mm/s 2. Section: 0.5-100μm with +/-5% precision 3. Trimming: 0-500 μm 4. Specimen orientation: +/-8 deg XY, 360 deg rotation 5. Sample: Standard Embedding box Maximum 50*45mm standard, 50x70mm max 6. Specimen retraction: 0-50um (0=off, 5/10/15/50um selectable) 7. CE / ISO 13485 certified

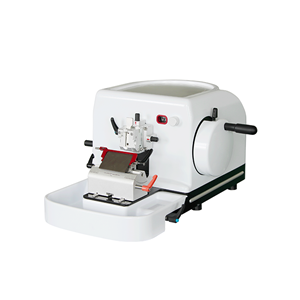

1. Manual operation — no electronics, low maintenance cost 2. Section thickness: 0-60μm with 3 precision interval ranges 3. Sample holder adjustable: XY ±16°, 360° rotation, blade angle 0°-10° 4. Dual locking handwheel: top lock + 360° position lock for safe operation 5. Blade holder with XY adjustment, safety guard, and easy disassembly 6. Specimen retraction: 50um (customizable) 7. CE / ISO 13485 certified, 1-year warranty with lifetime support

1. LED touch screen with Chinese/English interface, displays all key parameters 2. Dual Danfoss compressors with dedicated cooling for chamber, shelf, blade, and specimen 3. Chamber: -10°C to -40°C, adjustable; Peltier: -65°C (2 stations, 15min) 4. Sectioning: 1-100μm; Trimming: 5-500μm; Retraction: 0-90μm 5. Quick-freeze shelf: -45°C (26 stations); Max specimen: 55 × 60mm 6. UV sterilization, standby mode, CE certified

1. Secop dual-compressor with 5-point separate cooling for uniform temperature control 2. Peltier-assisted rapid freezing to -65 °C in 15 minutes 3. 10.1-inch color LCD touchscreen with multi-language support 4. Sectioning: 0.5-100 µm; Trimming: 0-600 µm; Retraction: 0-60 µm 5. UVC disinfection, nano-coated stainless steel chamber, seamless interior 6. One-touch memory function, programmable sleep mode, CE certified

1.It can used in low-profile disposable blade. (High-profile can customization) 2.It is suitable for Thermo/Leica Machine 3.The disposable blade can move horizontally to avoid the dangers of unintended contact with the blade 4.Every blade can cut specimen into three equal parts, which ensures the entire use of blade edge.

6 kinds of Patho Cutters are available from Erma for various uses. PATHO CUTTER R 35°(Low Profile) PATHO CUTTER R 22°(Low Profile) PATHO CUTTER II 35°(Low Profile) PATHO CUTTER I 35°(Low Profile) PATHO CUTTER HP-R 35°(High Profile) PATHO CUTTER HP 35°(High Profile)
