Roundfin RD-907S-M Touchscreen Pathology Grossing Station
1. Full 304 stainless steel construction with touchscreen intelligent control
2. Height-adjustable table (800-1000 mm) with fully enclosed splash-proof tempered glass door
3. Dual exhaust + air supply ventilation system with HEPA and activated carbon filtration
4. No-splash formalin dispensing and suction system for safe reagent handling
5. Integrated pulverizer (750w, 1.0hp, 3200rpm) with hair separator
6. Built-in LED lighting, UV disinfection, and automatic table washing device
Product Overview
The Roundfin RD-907S-M is an advanced touchscreen-controlled pathology grossing station designed for hospital pathology labs, forensic facilities, and teaching hospitals. Featuring a height-adjustable table (800-1000 mm), fully enclosed electric splash-proof tempered glass door, HEPA and activated carbon filtration, and integrated formalin management, the RD-907S-M provides a complete, safe, and intelligent grossing workstation. The touchscreen control panel enables one-click operation of ventilation, lighting, UV disinfection, and automatic table washing.

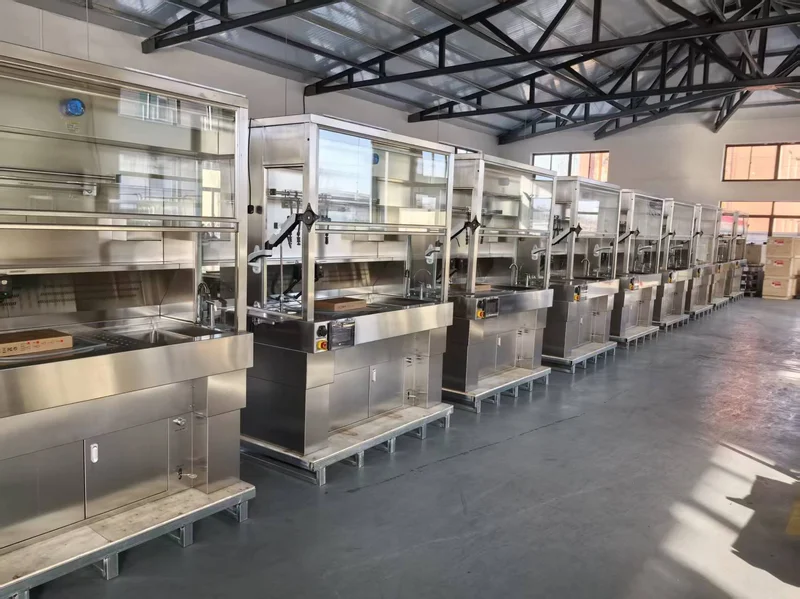

RD-907S-M production at Roundfin manufacturing facility
Key Specifications at a Glance
Material: 304 Stainless Steel | Size: L1500*W800*H2100mm | Control: Touchscreen | Filtration: HEPA + Activated Carbon
Custom Design Solutions Available
We provide tailored design proposals and accept full customization — dimensions, materials, configurations, and facility-specific integrations.
Technical Specifications
| Model | RD-907S-M |
| Material | Stainless Steel 304 (316 optional) |
| Product Size | L1500*W800*H2100mm |
| Table Height | 800 - 1000 mm adjustable |
| Control | Touchscreen intelligent control |
| Splash Door | Electric, fully enclosed, tempered glass |
| Ventilation | Dual exhaust + air supply, backdraft system |
| Filtration | HEPA filter + activated carbon |
| Formalin System | No-splash dispensing + suction |
| Pulverizer | 750w / 1.0hp / 3200rpm / 1600ML |

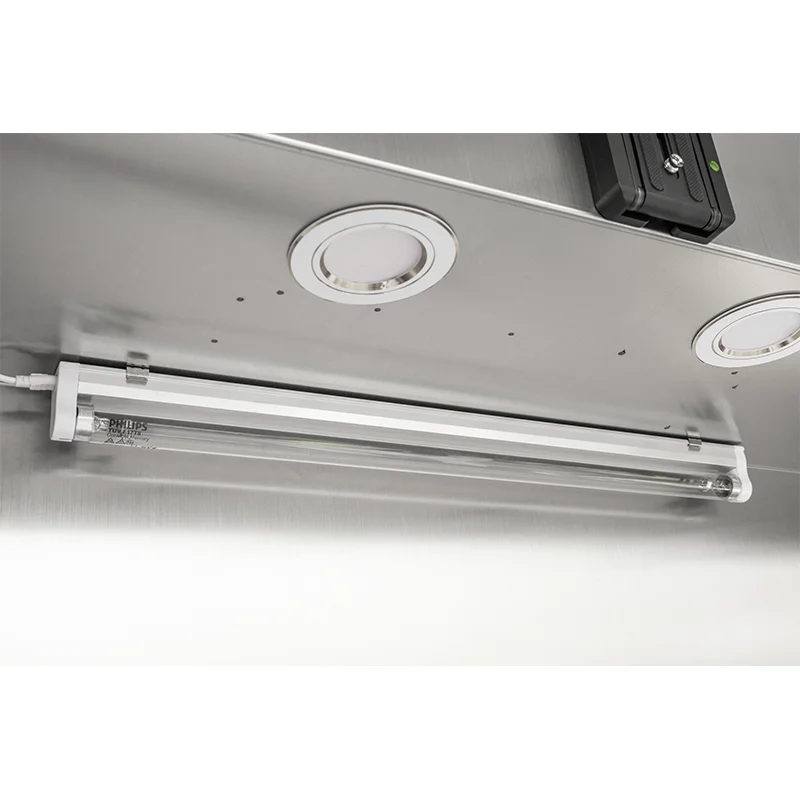

| Disinfection | UV lamp + automatic table washing |
| Lighting | Built-in LED |

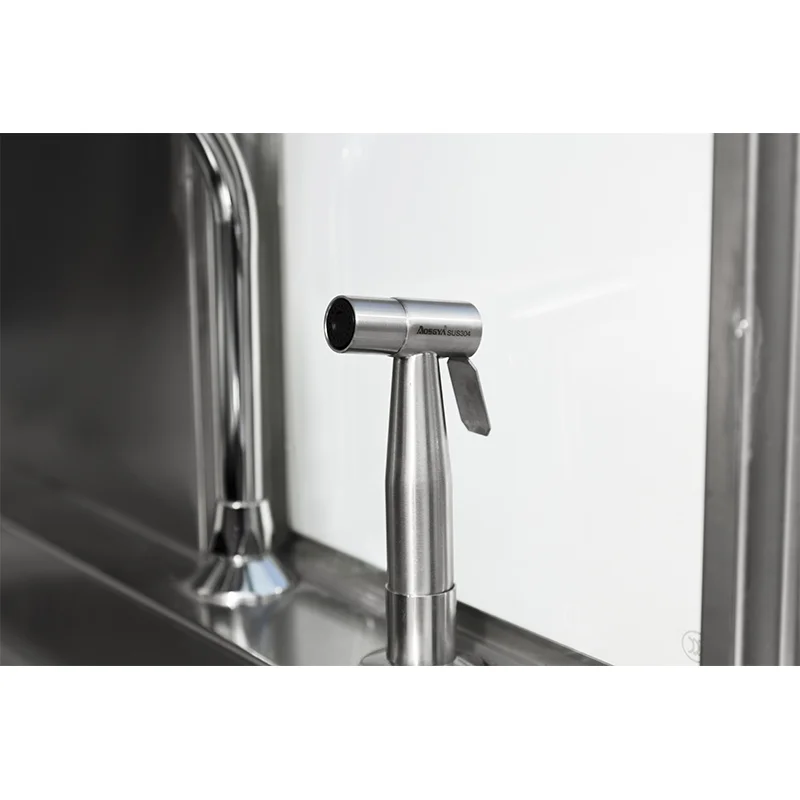

| Faucet | Hot/Cold water mixing with swing spout |
| Accessories | Keyboard holder, display holder, camera holder |
| Optional | Video/photo recording system, display screen, keyboard |
| Certification | CE/ISO |
| Welding | Fully welded and polished |
Standard Equipment
- Touch screen operation panel
- Fully enclosed height-adjustable splash-proof window
- Table height 800-1000mm adjustable
- Formalin distribution and collection system
- Backdraft exhaust ventilation system
- Activated carbon filtration system
- UV disinfection
- Table automatic washing device
- LED light
- Hot/Cold water mixing faucet with swing spout
- Keyboard and display screen holder
- Camera holder
Key Features

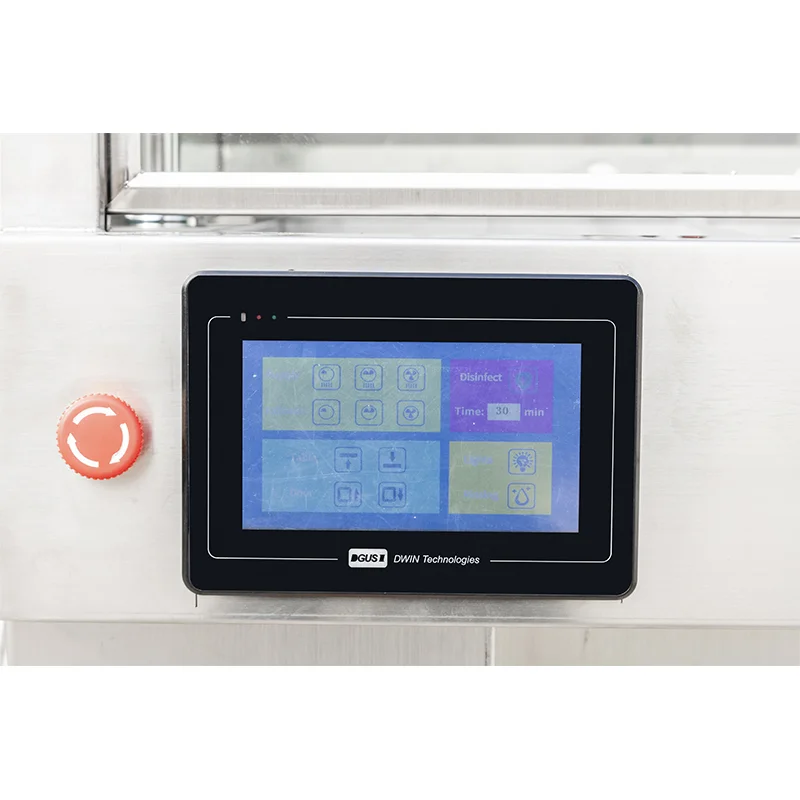

- Touchscreen Intelligent Control — One-click operation of ventilation, lighting, UV disinfection, and automatic table washing via the integrated touchscreen panel.
- Height-Adjustable Table — Electric height adjustment from 800 to 1000 mm accommodates different operators and procedures with ergonomic comfort.
- Comprehensive Ventilation — Dual exhaust and air supply system with HEPA filter and activated carbon removes harmful formalin vapors at the source.
- No-Splash Formalin System — Integrated formalin dispensing and suction system prevents reagent splashing during specimen handling.
- Integrated Waste Management — Powerful pulverizer (750w, 3200rpm) with hair separator crushes and discharges tissue debris efficiently.
- Built-in Sanitization — UV disinfection lamp and automatic table washing device maintain a clean workspace between procedures.
Product Video
FAQ
What is the RD-907S-M used for?
The RD-907S-M is an advanced pathology grossing station for tissue dissection, gross examination, and specimen preparation in hospital pathology labs, forensic facilities, and teaching hospitals.
How does the ventilation system work?
The dual exhaust and air supply system draws air downward from inclined ventilation openings on the inner side and top of the table. It connects to the facility's main ventilation pipe to extract harmful gases. HEPA and activated carbon provide additional filtration.
Does the table height adjust?
Yes. The working height is electrically adjustable from 800 mm to 1000 mm, allowing operators to find the most ergonomic position for different procedures.
Can the RD-907S-M be customized?
Yes. OEM customization is accepted. Optional accessories include video/photo recording system, external display screen, and keyboard. Material upgrade to 316 stainless steel is available.
