Roundfin RD-98 PRO Tissue Embedding Center
1. Dual HD color touch screens: 10.1-inch (embedding) + 5.6-inch (cold plate)
2. 12L wax tank with triple filtration and real-time wax level detection
3. Multi-point independent temperature control for all key components
4. Cold table: 0 to -30°C, up to Up to 70 embedded boxes
5. Large preheating tank (245mm × 180mm × 67mm mm) fits various dehydration baskets
6. CE & ISO 13485 certified, 1-year warranty with lifetime technical support
Product Overview
The RD-98 Pro Embedding Center is a high-end device tailored for pathology laboratories. It combines excellent performance with intelligent design and a user-friendly layout, featuring a compact, aesthetic structure and an intuitive interface suitable for both beginners and experienced technicians. With meticulous attention to detail—from precise temperature control to efficient wax management—it delivers efficiency and convenience, making it an indispensable tool for modern pathology labs.

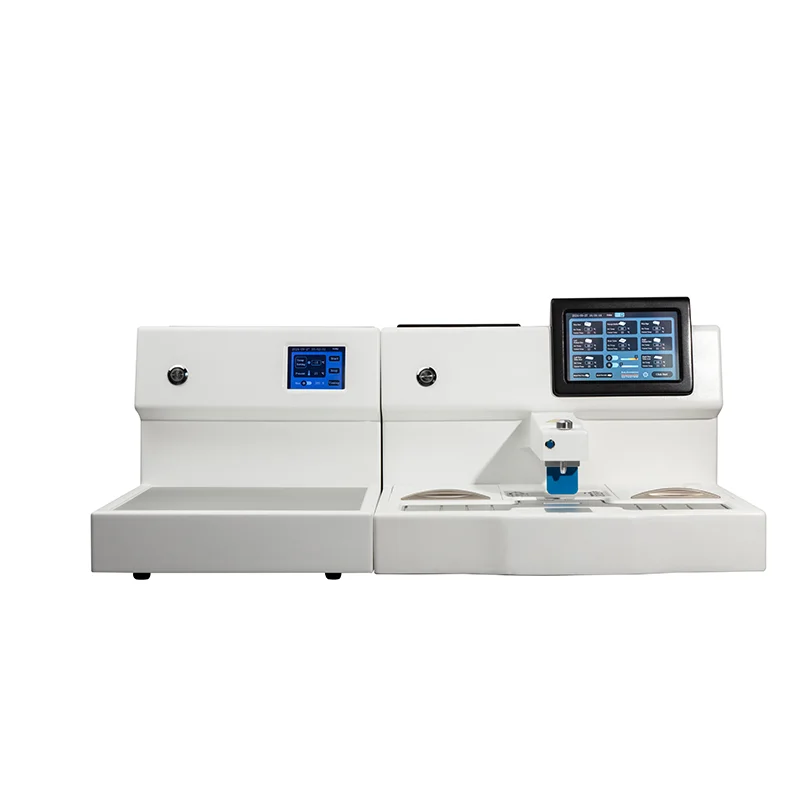

Figure 1 -- Roundfin RD-98 PRO Tissue Embedding Center with dual HD touch screens and independent temperature control
Key Specifications
Wax Tank: 12L | Cold Table: 0~-30°C (up to Up to 70 boxes) | Hot Table: Room temperature ~75°C | Display: 10.1" + 5.6" Dual HD Touch | Cert: CE, ISO 13485
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RD-98 PRO |
| Type | Tissue Embedding Center |
| Display | 10.1" HD color touch screen (embedding) + 5.6" HD color touch screen (cold plate) |
| Wax Cylinder Volume | 12L |
| Hot Table Temperature | Room temperature ~75°C |
| Cold Table Temperature | 0~-30°C |
| Cold Table Capacity | Up to Up to 70 embedded boxes |
| Preheating Tank | 245mm × 180mm × 67mm mm |
| Small Cooling Table | Stepless adjustment, independent temperature setting |
| Wax Trimming Module | Independent temperature control, 8 waxing holes |
| Timed Start/Shutdown | Set within a week |
| Hot Table Dimensions | 710mm × 670mm × 500mm mm |
| Cold Table Dimensions | 690mm × 480mm × 440mm mm |
| Weight | Hot Table: 45 KG / Cold Table: 40 KG |
| Power | Hot Table: 1,400 VA / Cold Table: 200VA |
| Power Supply | AC220V±10%, 50Hz±1Hz |
| Operating Environment | 5°C ~ 45°C, humidity ≤80% |
| Certification | CE, ISO 13485 |
| Warranty | 1 years, lifelong technical support |
| OEM Support | Accept the OEM |
Key Features
HD Intelligent Touch Experience -- Medical-grade HD color screens: 10.1-inch HD color touch screen for the embedding center and 5.6-inch HD color touch screen for the cold plate. The simple, intuitive interface and precise touch control ensure smooth, effortless operation.
Precise Temperature Control, All-Round Protection -- Multi-point independent temperature control: Arbitrary temperature setting for key components (wax tank, wax tube, left/right heating tanks, workbench, left/right wax trimmers, forceps holder, small cooling table). This ensures stable, efficient experiments and meets the needs of different samples and operations.
Efficient Wax Management -- 12L wax tank with triple filtration system to remove impurities and ensure wax solution purity. Real-time wax level detection and quick wax melting function boost work efficiency and streamline the experimental process.
Functional Table Tops for High Efficiency -- Wear-resistant, durable functional table tops for long-term use. The auxiliary small cooling table allows free refrigeration temperature setting, and the large preheating tank fits various dehydration baskets to meet diverse experimental needs for pathological embedding.
Wax Trimming Module, Precision Optimization -- Independent temperature-controlled waxing module with 8 waxing holes. It prevents paraffin accumulation on the table, ensures a clean operation area, and makes waxing more delicate and efficient—guaranteeing high-quality pathological embedding.
Cold Table Refrigeration, Ultimate Protection -- Large-size cold table working area with strong refrigeration (as low as -30°C). It provides ultimate low-temperature protection for samples, ensuring their integrity and stability during operation and laying a solid foundation for accurate pathological diagnosis.
Application Scenarios
| Scenario | How It Supports |
|---|---|
| High-Volume Hospital Histology Lab | 12L wax tank with triple filtration handles continuous embedding. Dual HD touch screens for independent hot/cold control. Timed startup for pre-heated readiness. |
| Pathology Research Center | Multi-point independent temperature control for key components -- wax tank, tubes, heating tanks, workbench, trimmers, forceps holder. Flexible for diverse research protocols. |
| Diagnostic Center | Up to 70 embedded box cold table capacity with -30°C refrigeration ensures sample integrity. CE & ISO 13485 certified for diagnostic compliance. |
| Medical University / Teaching Hospital | Intuitive dual-screen interface suitable for both experienced technicians and students. 8-hole wax trimming module keeps workstation clean during training sessions. |
FAQ
What is the difference between RD-98 PRO and RD-98?
The RD-98 PRO features dual HD color touch screens (10.1-inch + 5.6-inch), a larger 12L wax tank with triple filtration, multi-point independent temperature control across all components, and enhanced cold table capacity of up to Up to 70 boxes. The RD-98 is a more compact, economically priced alternative for standard throughput labs.
How does the triple wax filtration system work?
The 12L wax tank incorporates a three-stage filtration system that removes impurities and particulate matter from melted paraffin. Combined with real-time wax level detection and a quick wax melting function, it ensures consistent wax purity for high-quality embedding results with minimal downtime for cleaning or wax replacement.
Can the cold table temperature be adjusted independently?
Yes. The cold table operates from 0 to -30°C with stepless adjustment via its dedicated 5.6-inch HD color touch screen. The refrigeration temperature is fully independent of the hot table settings, allowing simultaneous paraffin embedding and rapid sample cooling.
Does the RD-98 PRO support timed startup and shutdown?
Yes. The programmable timer allows you to set automatic startup and shutdown at any time within a one-week schedule. This means the 12L wax tank can be pre-heated and ready for use when staff arrive in the morning, saving 30-45 minutes of warm-up time.
Need a High-End Tissue Embedding Center?
The Roundfin RD-98 PRO features dual HD touch screens, 12L wax tank with triple filtration, multi-point independent temperature control, and -30°C cold table with Up to 70-box capacity. CE & ISO 13485 certified with 1-year warranty and lifetime technical support.
