RD-355ATK Full-Auto Microtome | Roundfin
1. Fully automatic operation with adjustable cutting speed 0-300 mm/s
2. Section: 0.5-100μm with +/-5% precision
3. Trimming: 0-500 μm
4. Specimen orientation: +/-8 deg XY, 360 deg rotation
5. Sample: Standard Embedding box Maximum 50*45mm standard, 50x70mm max
6. Specimen retraction: 0-50um (0=off, 5/10/15/50um selectable)
7. CE / ISO 13485 certified
Product Overview

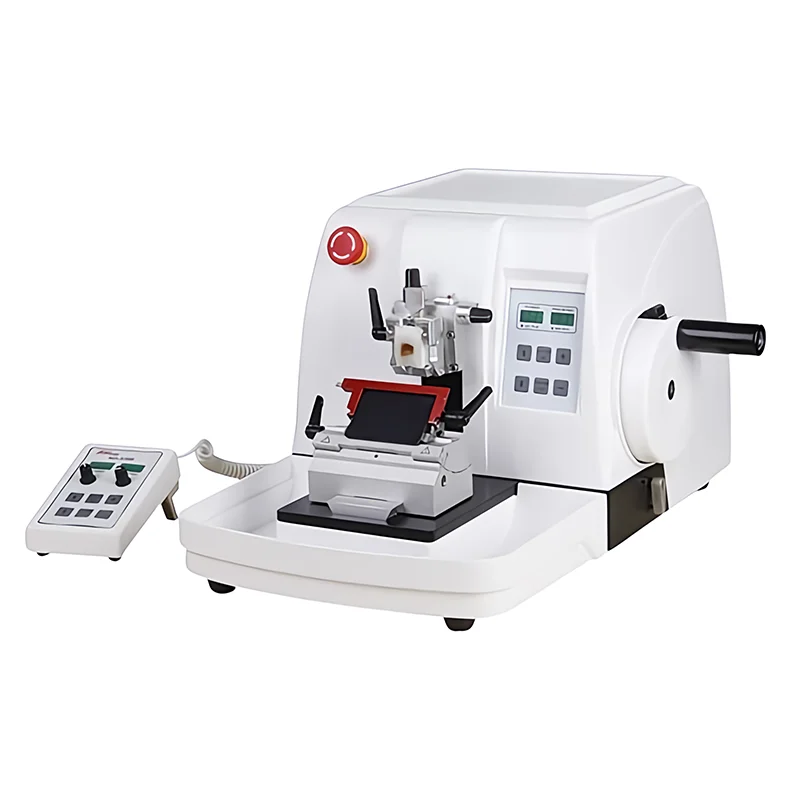

The Roundfin RD-355ATK is a fully automatic tissue microtome for high-throughput pathology laboratories. With adjustable cutting speed of 0-300 mm/s, section thickness of 0.5-100μm, and automatic specimen feed, it maximizes productivity. CE and ISO 13485 certified.
Key Specifications
Type: Full-Auto | Section: 0.5-100μm | Speed: 0-300mm/s | Cert: CE/ISO 13485
Technical Specifications
| Model | RD-355ATK |
| Type | Full-Auto Rotary Microtome |
| Section Thickness | 0.5-100μm |
| Trimming Thickness | 0-500 μm |
| Cutting Speed | 0-300mm/s |
| Specimen Orientation | 8° along the X-Y-axis, rotate 360° |
| Max Sample Size | 50x70mm |
| Sample Size Std | Standard Embedding box Maximum 50*45mm |
| Specimen Feed Speed | 1250μm/s (click), 200μm/s (keep pressing) |
| Retraction | 0-220μm/turn on or off |
| Certification | CE / ISO 13485 |
Key Features
Full Automation — Motorized cutting 0-300 mm/s eliminates handwheel fatigue.
Wide Section Range — 0.5-100μm with five precision intervals.
Programmable Trimming — 0-500 μm trimming range with automatic feed.
Precision Control — XY orientation with 360-degree rotation.
Auto Retraction — Protects sections and blade during return stroke.
Application Scenarios
| Scenario | How It Supports |
|---|---|
| High-Volume Hospital Lab | Full automation eliminates fatigue during 8-hour diagnostic shifts. |
| Reference Pathology Center | 0.5-100 um range meets demanding diagnostic standards. |
| Research Institute | Programmable parameters enable protocol standardization. |
| Medical University | Auto mode for demonstrations with consistent results. |
FAQ
How fast is the automatic cutting?
The RD-355ATK features adjustable cutting speed from 0 to 300 mm/s.
What section thickness range is supported?
0.5-100μm with five precision intervals.
What sample sizes are supported?
Standard embedding box samples up to Standard Embedding box Maximum 50*45mm, maximum section size 50x70mm.
How does this differ from RD-355AT?
The RD-355ATK shares the same specifications as the RD-355AT. Contact sales for specific configuration differences.
