Roundfin RS-3 Compact Automated H&E Slide Stainer
1. Compact design: 940*295*340mm (W*D*H) mm, 28KGS -- fits near the sectioning area
2. Stains 24pcs slides simultaneously across 15 (Station 1 is for drying, Station 2 is for washing and other 13 stations are for reagents)
3. 25 programmable protocols, each with 30 editable steps; 9-user management
4. Processing time: Adjustable within 0-59 minutes and within 0-59 seconds; dripping: Adjustable within 0-60s; stirring: Adjustable within 0-6 times/minute
5. Intelligent auto water inflow/flush/drainage for thorough washing
6. APS-coated corrosion-resistant housing; CE; ISO 13485 certified; 1 year and lifetime technical support
Product Overview
The Roundfin RS-3 is a compact, benchtop automated slide stainer designed specifically for H&E staining in histology and pathology laboratories. With a small footprint of just 940*295*340mm (W*D*H) mm and weighing only 28KGS, the RS-3 can be placed directly near the microtome sectioning area for an optimized staining workflow. The instrument processes 24pcs slides simultaneously across 15 (Station 1 is for drying, Station 2 is for washing and other 13 stations are for reagents) with Approximately 350ML reagent capacity per cup, delivering consistent, high-quality H&E staining in a space-efficient format.
Featuring an intuitive touch screen interface with a high-intelligence control system, the RS-3 stores 25 programmable staining protocols (each with 30 editable steps) across 9 user accounts with password-protected protocol security. The intelligent auto water inflow, flush, and drainage system guarantees thorough washing and water efficiency. Processing time is adjustable within Adjustable within 0-59 minutes and within 0-59 seconds per station with customizable dripping time (Adjustable within 0-60s) and stirring frequency (Adjustable within 0-6 times/minute). The APS-coated, streamline-designed housing is corrosion-resistant and easy to clean. The slide rack can stop above or inside the cup after staining with an audible alarm reminder. CE; ISO 13485 certified with 1 year and lifetime technical support.

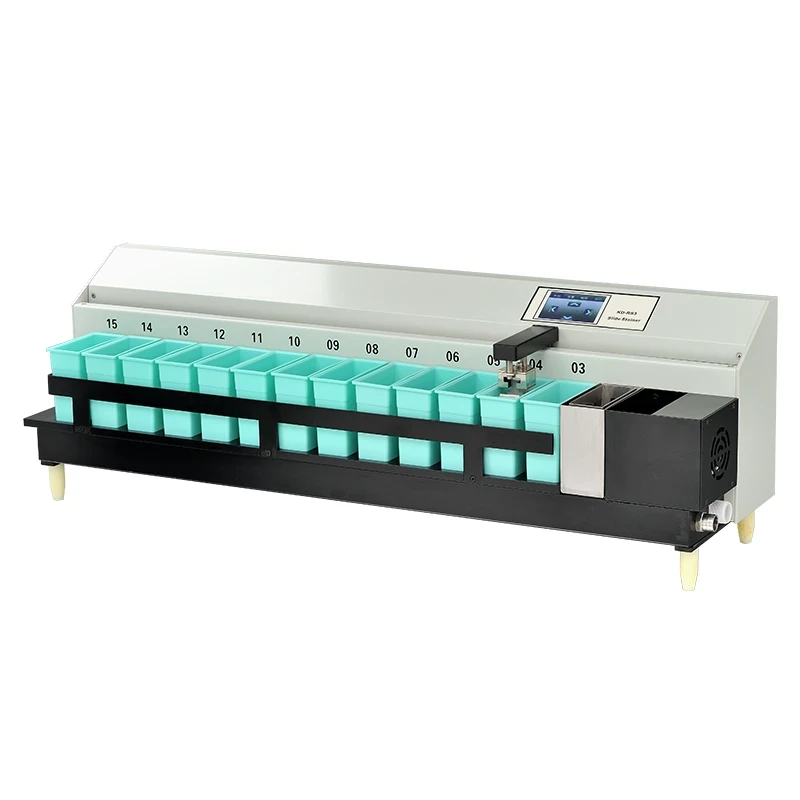

Figure 1 -- Roundfin RS-3 Compact Automated H&E Slide Stainer with intuitive touch screen and 15-cup design
Key Specifications
Design: Compact Benchtop (940*295*340mm (W*D*H) mm, 28KGS) | Capacity: 24pcs Slides x 15 (Station 1 is for drying, Station 2 is for washing and other 13 stations are for reagents) | Programs: 25 (30 Steps Each) | Users: 9 Password-Protected | Cert: CE; ISO 13485
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RS-3 |
| Type | Compact Automated H&E Slide Stainer |
| Slide Capacity | 24pcs |
| Number of Stations | 15 (Station 1 is for drying, Station 2 is for washing and other 13 stations are for reagents) |
| Reagent Cup Capacity | Approximately 350ML per cup |
| Processing Time | Adjustable within 0-59 minutes and within 0-59 seconds |
| Dripping Time | Adjustable within 0-60s |
| Stirring Frequency | Adjustable within 0-6 times/minute |
| Temperature Precision | ±1% |
| Programs | 25 protocols, 30 editable steps each |
| User Management | 9 usernames and passwords can be stored in the system to ensure the safety of each user's staining protocol and each user can program 25 sets of staining protocols |
| Water System | Intelligent auto inflow / flush / drainage |
| Housing | APS-coated, corrosion-resistant, easy-clean |
| Voltage | AC 220 V ±10% 50Hz (standard model) / 110V 60Hz |
| Power | 400W |
| Dimensions (W x D x H) | 940*295*340mm (W*D*H) |
| Net Weight | 28KGS |
| Package | 1060*370*400mm, 40KGS |
| Certification | CE; ISO 13485 |
| Warranty | 1 year and lifetime technical support |
Key Features
- Compact Benchtop Design -- At just 940*295*340mm (W*D*H) and 28KGS, the RS-3 fits near the microtome sectioning area for an optimized staining workflow without requiring dedicated lab space.
- Intuitive Touch Screen Interface -- High-intelligence control system with touch screen delivers full functionality, reliable performance, and simple operation. Easy to learn and use for technicians of all experience levels.
- 25 Programmable Protocols -- Each protocol supports 30 editable steps with adjustable processing time (Adjustable within 0-59 minutes and within 0-59 seconds), dripping time (Adjustable within 0-60s), and stirring frequency (Adjustable within 0-6 times/minute).
- 9-User Password Management -- 9 usernames and passwords can be stored in the system to ensure the safety of each user's staining protocol and each user can program 25 sets of staining protocols. Each user's staining protocols are protected under their own login credentials.
- Intelligent Auto Water System -- Automatic water inflow, flush, and drainage guarantees thorough washing between staining steps while maximizing water efficiency.
- APS-Coated Durable Housing -- Streamline-designed, corrosion-resistant exterior with APS coating for easy cleaning and long service life in demanding histology lab environments.
- Flexible Rack Positioning -- The slide rack can stop above or inside the reagent cup after staining is complete, with an audible alarm reminder to alert the operator.
- Low-Noise Flexible Transmission -- Wear-resistant transmission system ensures stable, reliable, and quiet performance over years of daily use.
RS-3 vs RS-5: Which Stainer Fits Your Lab?
| Feature | RS-3 (Compact) | RS-5 (High-Throughput) |
|---|---|---|
| Footprint | 940*295*340mm (W*D*H) (Compact) | 1050x615x590mm (Full-size) |
| Capacity | 24pcs slides | 400 slides/hour |
| Stations | 15 (Station 1 is for drying, Station 2 is for washing and other 13 stations are for reagents) | 36 |
| Programs | 25 | 10 |
| Best For | Small labs, clinics, sectioning-area placement | High-volume hospital histology labs |
Application Scenarios
| Scenario | How It Supports |
|---|---|
| Small Clinic / Private Pathology Lab | Compact 940*295*340mm (W*D*H) footprint fits in limited benchtop space. 24pcs-slide capacity matches small-lab daily throughput. Simple touch screen requires minimal training. |
| Sectioning-Area Placement | Place directly beside the microtome for immediate H&E staining of sections as they are cut. Eliminates walking to a central staining station. |
| Research Laboratory | 25 protocols with 30 editable steps each for customized research staining. 9-user management protects individual researcher protocols. APS-coated housing resists research reagents. |
| Veterinary Pathology | Compact size ideal for vet diagnostic labs. Auto water inflow/flush/drainage simplifies daily operation. Corrosion-resistant housing handles varied veterinary stains. |
| Medical University / Teaching | 9-user accounts for student groups. Intuitive touch screen simplifies training. Audible alarm reminds students when staining is complete. |
FAQ
How many slides can the RS-3 process at once?
The RS-3 processes 24pcs slides simultaneously across 15 (Station 1 is for drying, Station 2 is for washing and other 13 stations are for reagents) with approximately Approximately 350ML reagent per cup. Station 1 is for drying, Station 2 for washing, and the remaining 13 stations are for reagents.
How is the RS-3 different from the RS-5?
The RS-3 is a compact H&E stainer (940*295*340mm (W*D*H), 28KGS, 24pcs slides) designed for placement near the sectioning area. The RS-5 is a high-throughput stainer (1050x615x590mm, 80kg, 400 slides/hour) intended for central histology lab deployment. RS-3 offers 25 programs with 9-user management; RS-5 offers 10 programs with robotic arm handling. Choose RS-3 for small labs and sectioning-area convenience; choose RS-5 for high-volume central lab throughput.
How many staining programs and users can be stored?
The RS-3 stores 25 programmable staining protocols, each with 30 editable steps. Up to 9 users can be registered with individual passwords, ensuring each user's staining protocols are protected from unauthorized changes.
Does the RS-3 have an automatic water system?
Yes. The RS-3 features an intelligent auto water inflow, flush, and drainage system that ensures thorough washing between staining steps while maximizing water efficiency. This eliminates manual water changes and reduces technician hands-on time.
Need a Compact H&E Stainer for Your Lab?
The Roundfin RS-3 features a compact 940*295*340mm (W*D*H) footprint, 24pcs-slide capacity, 15 (Station 1 is for drying, Station 2 is for washing and other 13 stations are for reagents) stations, 25 programmable protocols with 9-user management, intelligent auto water system, and intuitive touch screen. CE; ISO 13485 certified with 1 year and lifetime technical support. OEM available.
