Roundfin RD-QS1100 Fully Automated Compact Slide Stainer
1. Compact design: L*W*H=300mm*705mm*280mm mm, only 21KG -- fits on any lab bench
2. 6 pcs staining racks with 20 (Repeat Station, Clean Bath can be set) (135ml each, stations 2-17 auto-cleanable)
3. Heating tank: ≤70°C; processing time per tank: 59min59s
4. 10pcs, with online fault reminder code; water protection with auto shut-off & alarm; auto-calibration
5. Priority-adjustable for sample conditions; LCD screen for real-time status
6. CE; ISO 13485 certified; 1 year and lifetime technical support
Product Overview
The Roundfin RD-QS1100 is a fully automated compact slide stainer designed for histology and pathology laboratories that need reliable H&E and special staining in a space-saving format. At just L*W*H=300mm*705mm*280mm mm and 21KG, the RD-QS1100 fits on any laboratory bench while delivering professional-grade automatic staining across 20 (Repeat Station, Clean Bath can be set) with 135ml reagent volume per tank.
Featuring an LCD screen for real-time status monitoring, 10pcs, with online fault reminder code with online fault prompt codes, a heating tank (≤70°C), water protection with automatic shut-off and alarm, priority-adjustable scheduling when programs conflict, and auto-calibration for position accuracy, the RD-QS1100 combines intelligent automation with compact reliability. Stations 2-17 support automatic cleaning (water flushing) with adjustable water flow. Human intervention is available during automatic operation to prevent sample damage from equipment failure. CE; ISO 13485 certified with 1 year and lifetime technical support.

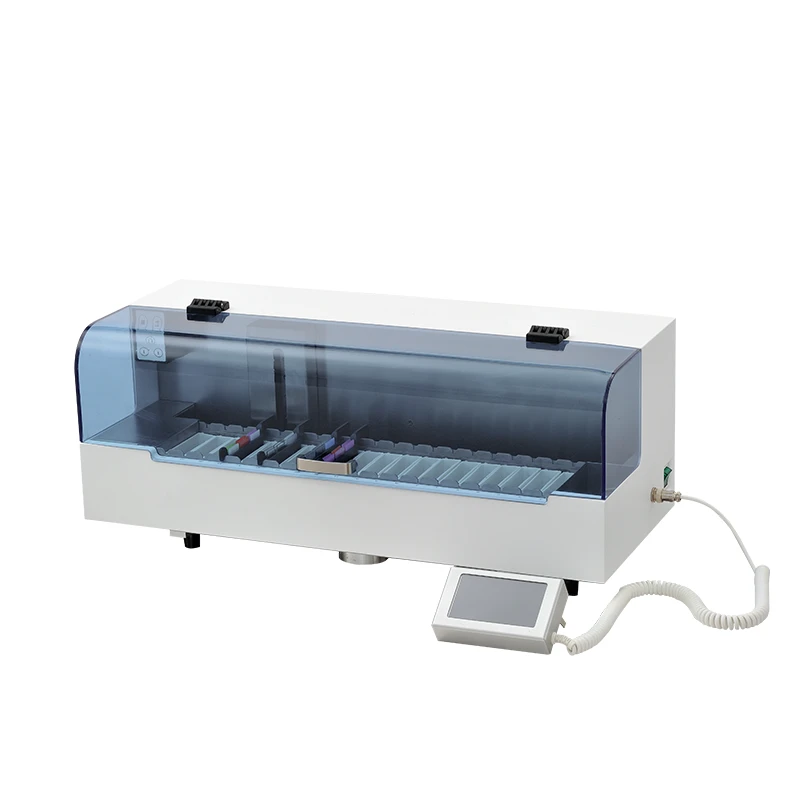

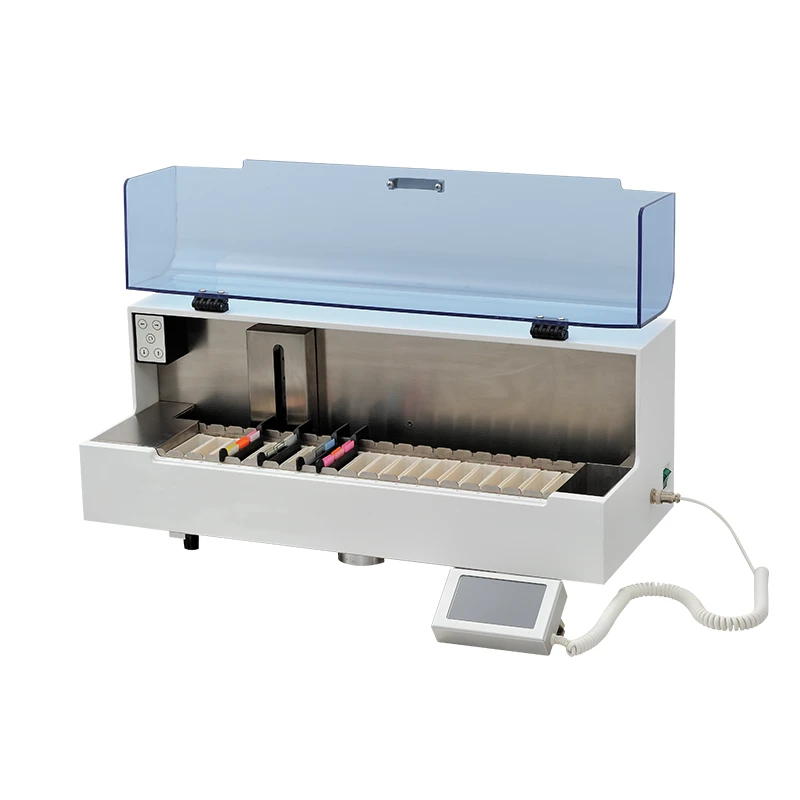

Figure 1 -- Roundfin RD-QS1100 Fully Automated Compact Slide Stainer with LCD screen and 20 (Repeat Station, Clean Bath can be set) reagent tanks
Key Specifications
Design: Compact (L*W*H=300mm*705mm*280mm, 21KG) | Capacity: 6 pcs Racks x 20 (Repeat Station, Clean Bath can be set) | Heating: ≤70°C | Tank Vol: 135ml | Programs: 10pcs, with online fault reminder code | Cert: CE; ISO 13485
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RD-QS1100 |
| Staining Racks | 6 pcs |
| Reagent Tanks | 20 (Repeat Station, Clean Bath can be set) |
| Tank Volume | 135ml |
| Wash Station | 1 |
| Heating Temperature | ≤70°C |
| Processing Time / Tank | 59min59s |
| Tank Change Drain Time | 10s |
| Programs | 10pcs, with online fault reminder code |
| Auto-Cleaning | Stations 2-17, adjustable water flow |
| Water Protection | Auto shut-off & alarm when water blocked |
| Priority System | Adjustable, higher priority samples processed first |
| Calibration | Automatic position calibration |

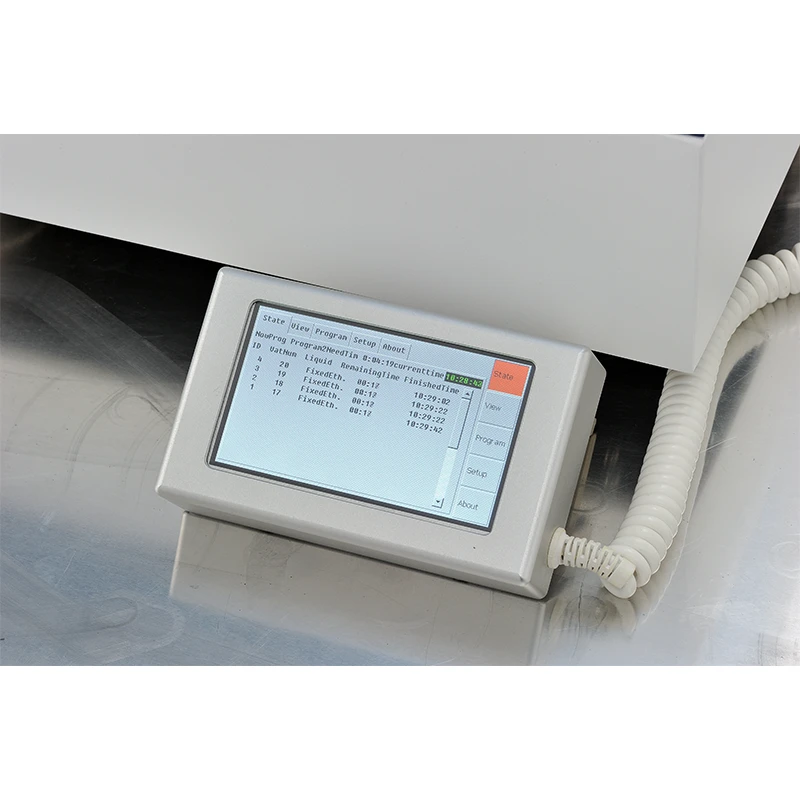

| Display | LCD screen, real-time status & data |
| Working Environment | 5-40°C, humidity ≤80% |
| Dimensions (L x W x H) | L*W*H=300mm*705mm*280mm mm |
| Weight | 21KG |
| Power | 100W / AC220V±22V, 50Hz±1Hz (110V 60Hz optional) |
| Package | 820mm*420mm*500mm mm, 37KGS |
| Certification | CE; ISO 13485 |
| Warranty | 1 year and lifetime technical support |
Key Features
- Ultra-Compact Design -- At just L*W*H=300mm*705mm*280mm and 21KG, the RD-QS1100 fits on any lab bench. The smooth-running lifting and transverse mechanisms ensure efficient operation.
- Water Protection with Auto Shut-Off -- Built-in water protection device automatically shuts off water supply and triggers an alarm when a blockage is detected, preventing flooding or specimen damage.
- Auto-Cleanable Stations 2-17 -- Tanks 2-17 support automatic water flushing with adjustable flow rates. Users can configure the cleaning status of any tank as needed.
- Priority-Adjustable Scheduling -- When multiple staining programs conflict, users can assign priority levels based on sample urgency. Higher priority samples are processed first.
- Identical Multi-Tank Configuration -- Different tanks can be set identically to avoid workflow bottlenecks when protocols require extended time in a particular reagent -- common in queued staining pipelines.
- Flexible End-Tank Programming -- Configure any tank as the final destination where operators retrieve finished slides after the staining cycle is complete.
- Auto-Calibration -- Automatic position calibration corrects alignment errors without manual adjustment, ensuring precise station positioning across every cycle.
- Human Intervention Mode -- Operators can intervene during automatic operation to prevent or correct issues, protecting valuable specimens from equipment malfunction.
- 10pcs, with online fault reminder code with Online Fault Codes -- Programmable protocols with fault codes displayed on the LCD screen for rapid troubleshooting.
Application Scenarios
| Scenario | How It Supports |
|---|---|
| Small Clinic / Private Lab | L*W*H=300mm*705mm*280mm compact footprint fits any bench. 21KG weight easily repositioned. 6 pcs racks accommodate small-lab throughput. |
| Hospital Histology Lab | Priority scheduling for urgent biopsy cases. 10 programs for standardized staining. Auto-cleanable tanks reduce daily maintenance. |
| Veterinary Pathology | 100W low power consumption. 135ml small reagent volume reduces chemical waste for lower-volume veterinary labs. Water protection prevents flooding. |
| Medical University / Teaching | LCD screen with fault codes simplifies student troubleshooting. Human intervention mode allows instructors to demonstrate step-by-step staining. |
FAQ
How compact is the RD-QS1100 compared to other stainers?
The RD-QS1100 is our most compact automatic stainer at L*W*H=300mm*705mm*280mm and 21KG -- smaller than RS-3 (940x295x340mm, 28kg) and significantly smaller than RS-4 (L*W*H=300mm*705mm*280mm vs 1390mm width). It is designed for labs where bench space is the primary constraint.
How does the water protection system work?
The RD-QS1100 is equipped with a water protection device that monitors water flow through the system. If a blockage is detected in the water supply or drainage lines, the machine automatically shuts off the water and triggers an audible/visual alarm, preventing flooding and protecting both the instrument and the laboratory workspace.
How does the priority scheduling work?
When multiple programs are queued and conflict for the same reagent station, operators can assign priority levels based on sample urgency. Higher priority samples (e.g., urgent biopsy cases) are processed before lower priority batches. This ensures time-critical specimens are not delayed by routine staining runs.
Which tanks support automatic cleaning?
Stations 2 through 17 support automatic water flushing with adjustable flow rates. Users can set the cleaning status of any individual tank as needed for their specific staining protocols and reagent types.
Need an Ultra-Compact Automatic Stainer?
Roundfin RD-QS1100: L*W*H=300mm*705mm*280mm, 21KG, 6 pcs racks, 20 (Repeat Station, Clean Bath can be set) (135ml/tank), ≤70°C heating, 10 programs, auto-cleanable tanks, water protection, priority scheduling. CE; ISO 13485 certified, 1 year and lifetime technical support.
Request a quotation: Contact our team -- reply within 12 hours.
