Roundfin RS-5 Fully Automatic Slide Stainer
1. 10.4-inch color touch screen with 10 programmable staining programs
2. 36 pcs total stations: 26 pcs reagent tanks (500ml) + 5 pcs wash tanks
3. High throughput: up to 400 specimens per hour; supports 4+ programs & 30 racks simultaneously
4. Robotic arm with shaking, draining & liquid throwing to reduce dye carry-over
5. Multiple alarms + fault-stop memory resume + 3-level reagent access priority
6. CE; ISO 13485 certified; 1 year and lifetime technical support; exhaust filtration & oven optional
Product Overview
The Roundfin RS-5 is a fully automatic linear slide stainer designed for high-throughput histology and pathology laboratories. Featuring a 10.4-inch color touch screen with 10 programmable staining programs, 36 pcs total stations (26 pcs reagent tanks at 500ml each + 5 pcs wash tanks), and a robotic arm system that performs shaking, draining, and liquid throwing to minimize dye carry-over between stations, the RS-5 delivers consistent, high-quality H&E and special staining with exceptional throughput of up to 400 specimens per hour.
The RS-5 supports 4+ programs and 10+ staining racks running simultaneously without interference, with real-time rack status display. Intelligent features include a fault-stop memory that resumes from the memorized position to maximize specimen utilization, a 3-level reagent access priority system for multi-program scheduling, automatic reagent replacement prompts after repeated use, and multiple alarm functions for glass cover, download drawer, and reagent status. The 1st, 2nd, 13th, and 14th cylinders are heated for more complete staining reactions. Optional exhaust air filtration system and oven function available. CE; ISO 13485 certified with 1 year and lifetime technical support.

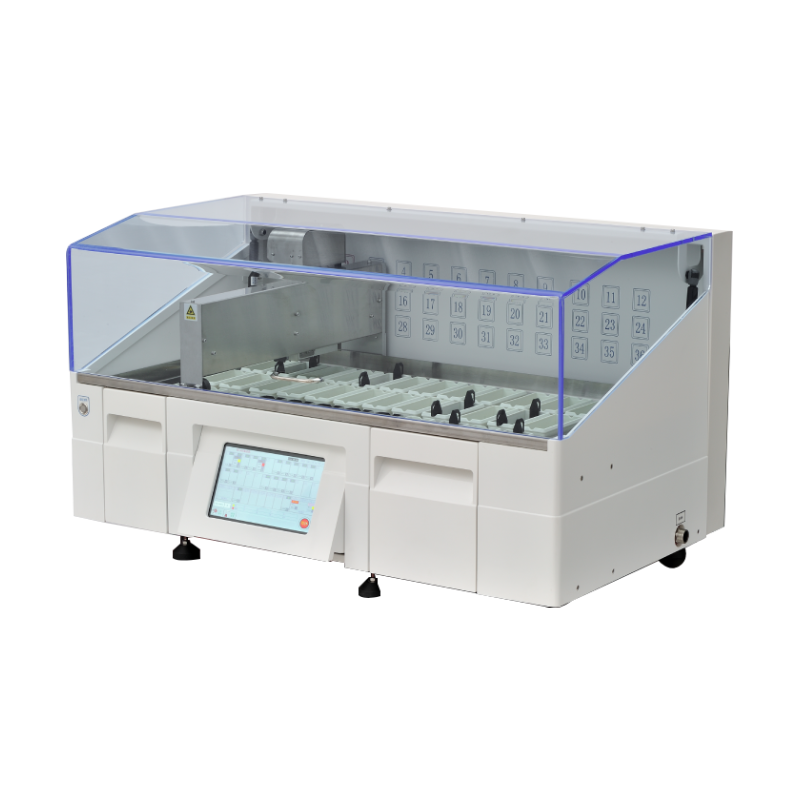

Figure 1 -- Roundfin RS-5 Fully Automatic Slide Stainer with 10.4-inch touch screen and 36 pcs-station linear design
Key Specifications
Display: 10.4 inch 22.5*13.5cm | Stations: 36 pcs (26 pcs Reagent + 5 pcs Wash) | Throughput: 400 specimens per hour | Racks: 10+ Simultaneously | Cert: CE; ISO 13485
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RS-5 |
| Type | Fully Automatic Linear Slide Stainer |
| Display | 10.4 inch 22.5*13.5cm |
| Total Stations | 36 pcs |
| Reagent Tanks | 26 pcs x 500ml each |
| Wash Stations | 5 pcs automatic washing tanks |
| Heated Cylinders | 1st, 2nd, 13th, 14th -- heated for complete staining reactions |
| Upload Stations | 2 pcs |
| Download Stations | 3 pcs |
| Rack Capacity | 30 staining racks; Up to 10 staining racks for different programs can be processed simultaneously |
| Throughput | 400 specimens per hour |
| Robotic Arm | Shaking, draining & liquid throwing to reduce dye carry-over |
| Programs | 10 programmable; color-coded start; real-time display |
| Fault Recovery | Memory resume from fault-stop position |
| Priority System | 3-level reagent access priority (Level 3 highest) |
| Working Environment | 5°C~35°C, humidity ≤90% (25°C) |
| Dimensions (L x W x H) | Length*width*height=1050mm*615mm*590mm mm |
| Weight | 80KGS |
| Power Supply | AC220V±22V, 50Hz±1Hz |
| Power | 200W |
| Options | Exhaust filtration system; oven function; user authorization system |
| Package (L x W x H) | 114*71.5*85cm cm, 150KGS |
| Certification | CE; ISO 13485 |
| Warranty | 1 year and lifetime technical support |
| OEM | OEM |
Key Features
- 10.4-inch Color Touch Screen -- Intuitive interface with 10 programmable staining protocols. Color-coded program start with real-time display of staining progress and rack status.
- High-Throughput Parallel Processing -- Supports 4+ programs and 10+ staining racks running simultaneously without interference. Maximum throughput of 400 specimens per hour.
- Robotic Arm with Anti-Carry-Over -- Automated shaking, draining, and liquid throwing functions significantly reduce dye carry-over between reagent stations, ensuring staining consistency.
- Heated Reagent Cylinders -- The 1st, 2nd, 13th, and 14th cylinders are heated for more complete chemical reactions and improved specimen staining quality.
- Fault-Stop Memory Resume -- After an unexpected stop, the instrument automatically resumes from the memorized position, maximizing specimen utilization and preventing batch loss.
- 3-Level Reagent Access Priority -- When multiple programs run simultaneously, reagent tank access priority can be set across 3 levels (Level 3 highest) for optimal scheduling efficiency.
- Multiple Alarm Functions -- Alarms for unclosed glass cover, reagent replacement prompts after repeated use, and download drawer status (full or unclosed).
- 5 pcs Automatic Wash Tanks -- Support automatic washing for multiple staining racks simultaneously. 2 stations can be set as empty for auto-optimized multi-rack processing.
- Optional Upgrades -- Exhaust air filtration system, oven function, and user authorization system (password and barcode-based dye management) available.
Application Scenarios
| Scenario | How It Supports |
|---|---|
| High-Volume Hospital Histology Lab | 400 specimens per hour throughput with 10+ racks simultaneous processing. 10 programmable protocols for standardized H&E and special stains. 3-level priority for urgent biopsy cases. |
| Reference / Research Laboratory | 10 programmable protocols for diverse special stains. Heated cylinders for temperature-sensitive reactions. Robotic arm ensures reproducible staining across research batches. |
| Veterinary Pathology | 26 pcs reagent stations for multiple stain protocols. Fault-stop memory protects batches from unexpected interruptions. Optional exhaust filtration for lab safety. |
| Medical University / Teaching Hospital | Intuitive touch screen simplifies student training. Color-coded program start for clear workflow visualization. Optional user authorization for controlled reagent access. |
FAQ
How many slides can the RS-5 process per hour?
The RS-5 achieves a maximum throughput of 400 specimens per hour. It supports 10+ staining racks with up to 30 racks processed simultaneously across 36 pcs stations, with 4+ independent programs running in parallel without interference.
What happens if the instrument stops unexpectedly during a staining run?
The RS-5 features fault-stop memory resume. After the issue is resolved, the instrument automatically resumes from the memorized position in the staining protocol, maximizing specimen utilization and preventing the loss of partially processed slides.
How does the robotic arm reduce dye carry-over?
The robotic arm performs three automated functions between reagent stations: shaking to dislodge excess dye, draining to remove residual reagent, and liquid throwing to eliminate droplet carry-over. Combined with the 5 pcs automatic wash tanks, this significantly reduces cross-contamination between staining stations.
Can multiple staining programs run simultaneously?
Yes. The RS-5 supports 4+ programs and 10+ staining racks running simultaneously without mutual interference. The 3-level reagent tank access priority system (Level 3 highest) can be configured to optimize scheduling when multiple programs compete for the same reagent station. Rack status and program progress are displayed in real time on the 10.4 inch 22.5*13.5cm touch screen.
Need a High-Throughput Automatic Slide Stainer?
The Roundfin RS-5 features 36 pcs stations, 10.4 inch 22.5*13.5cm touch screen, 400 specimens per hour throughput, robotic arm with anti-carry-over, 10 programmable protocols, fault-stop memory, 3-level priority system, and 5 pcs automatic wash tanks. Optional exhaust filtration and oven available. CE; ISO 13485 certified with 1 year and lifetime technical support.
