Roundfin RD-2290 Cryostat
1. Secop dual-compressor with 5-point separate cooling for uniform temperature control
2. Peltier-assisted rapid freezing to -65 °C in 15 minutes
3. 10.1-inch color LCD touchscreen with multi-language support
4. Sectioning: 0.5-100 µm; Trimming: 0-600 µm; Retraction: 0-60 µm
5. UVC disinfection, nano-coated stainless steel chamber, seamless interior
6. One-touch memory function, programmable sleep mode, CE certified
Product Overview
The Roundfin RD-2290 Cryostat is a state-of-the-art instrument designed for high-performance frozen sectioning in pathology, biomedical research, and clinical diagnostics. It integrates rapid cooling, precise temperature control, and intelligent operation to ensure optimal sample preservation and superior slice quality. Engineered for efficiency and user safety, the RD-2290 streamlines the entire workflow from sample freezing to sectioning.
At its core, the RD-2290 is powered by an international brand Secop dual-compressor system delivering powerful, reliable, and quiet refrigeration. The instrument provides five-point separate cooling to the freezing chamber, freezing table, blade holder, specimen head, and tissue flattener for uniform and stable temperatures. The Peltier (semiconductor) assist cooling reaches an ultra-low -65 °C on the freezing table, enabling fast freezing in just 15 minutes.

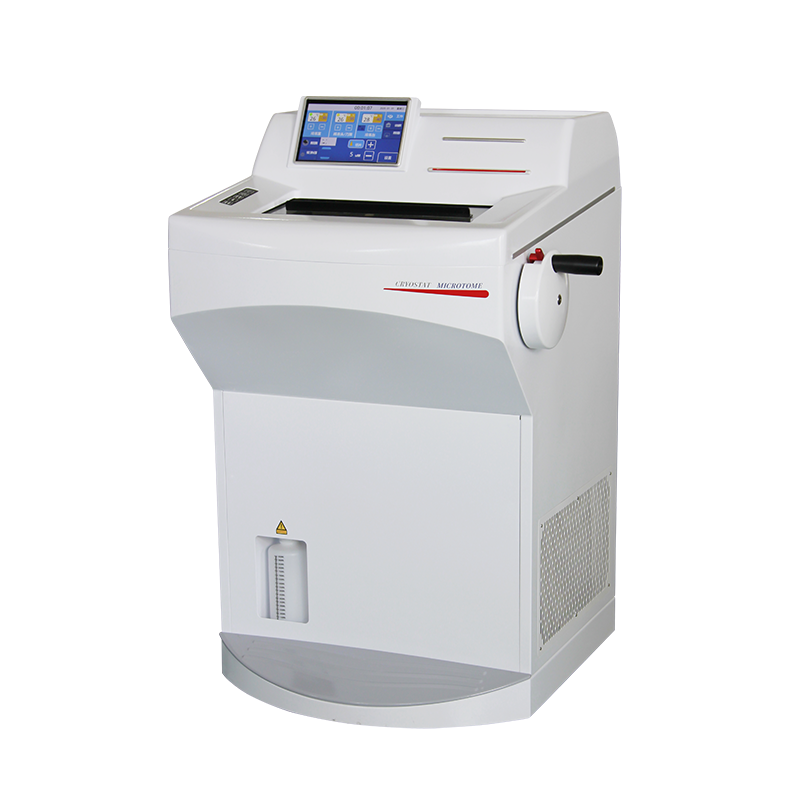

Figure 1 -- Roundfin RD-2290 Cryostat with 10.1-inch LCD touchscreen, dual-compressor cooling, and UVC disinfection
Key Specifications
Compressor: Secop Dual | Quick-Freeze: -65 °C (15 min) | Display: 10.1" LCD Touch | Sectioning: 0.5-100 µm | UVC: Built-in
Technical Specifications
Cooling & Temperature
| Parameter | Specification |
|---|---|
| Compressor | Secop dual-compressor (international brand), quiet operation |
| Cooling System | 5-point separate cooling (chamber, table, blade holder, specimen head, tissue flattener) |
| Freezing Chamber / Table / Head | 0 °C to -50 °C |
| Peltier Freezing Table | -65 °C (15-minute fast freeze) |
| Freezing Stations | 24 standard + 6 Peltier (semiconductor) points |
| Sleep Mode | Energy-saving -5 °C to -15 °C chamber; ready in 15 minutes |
Microtome & Sectioning
| Parameter | Specification |
|---|---|
| Sectioning Range | 0.5 µm to 100 µm (0.5/1/2/5 µm increments) |
| Trimming Range | 0 µm to 600 µm (5/10/50 µm increments) |
| Specimen Retraction | 0-60 µm (2 µm increments) |
| Vertical Travel | 66 mm |
| Horizontal Travel | 25 mm |
| Max Specimen Size | 55 mm x 80 mm |
| Cassette Head Rotation | 360 deg Y-axis, 12 deg X-axis |
| Motorized Advance | Two speeds: 1.8 mm/s, 0.45 mm/s |
| Slice Modes | Full / half blade with automatic recognition |
User Interface & General
| Parameter | Specification |
|---|---|
| Display | 10.1-inch color LCD touchscreen |
| Languages | Chinese, English, Russian, Spanish, Portuguese |
| Chamber Interior | Seamless stainless steel with nano-coating; anti-microbial; prevents nitrogen leakage |
| Disinfection | Built-in UVC ultraviolet lamp |
| Freezing Table | Double-layer removable; prevents frost buildup |
| Tissue Flattener | Refrigerated, anti-stick, down to -50 °C |
| Safety | Full-length knife guard; blue knife advancer for operator protection |
| Window | Single-pane heated glass; anti-condensation |
| Mechanical System | External (outside freezing chamber); protected from ice crystal damage |
| Liquid Nitrogen | Management system with level monitoring and alarm |
| Data Interface | USB / TF card interface |
| Dimensions (W x D x H) | 700 mm x 780 mm x 1230 mm |
| Included | Rubber base with waste container; color-coded specimen trays |
Key Features
1. Advanced Rapid Cooling System
Secop Dual-Compressor -- International brand compressor delivers powerful, reliable, and quiet refrigeration for consistent frozen section quality.
5-Point Separate Cooling -- Independent temperature control for the freezing chamber, freezing table, blade holder, specimen head, and tissue flattener ensures uniform and stable temperatures across all contact points.
Peltier Assist Cooling -- Semiconductor-assisted freezing reaches -65 °C on the freezing table, enabling fast sample freezing in just 15 minutes.
Programmable Sleep Mode -- Maintains chamber at energy-saving -5 °C to -15 °C between cases; returns to cutting temperature in 15 minutes.
2. Precision Sectioning & Versatility
Wide Sectioning Range -- From ultra-thin 0.5 µm to 100 µm with incremental adjustments (0.5/1/2/5 µm) for flawless frozen sections.
Broad Trimming Range -- 0 µm to 600 µm (5/10/50 µm increments) for quick and efficient block facing.
Specimen Retraction -- Adjustable 0-60 µm (2 µm increments) to protect delicate samples during the return stroke.
Large Sample Capacity -- Accommodates oversized specimens up to 55 mm x 80 mm with 66 mm vertical travel and 25 mm horizontal travel.
Flexible Cassette Head -- 360 deg Y-axis and 12 deg X-axis rotation for quick sample orientation without repositioning.
3. Intelligent User Interface & Automation

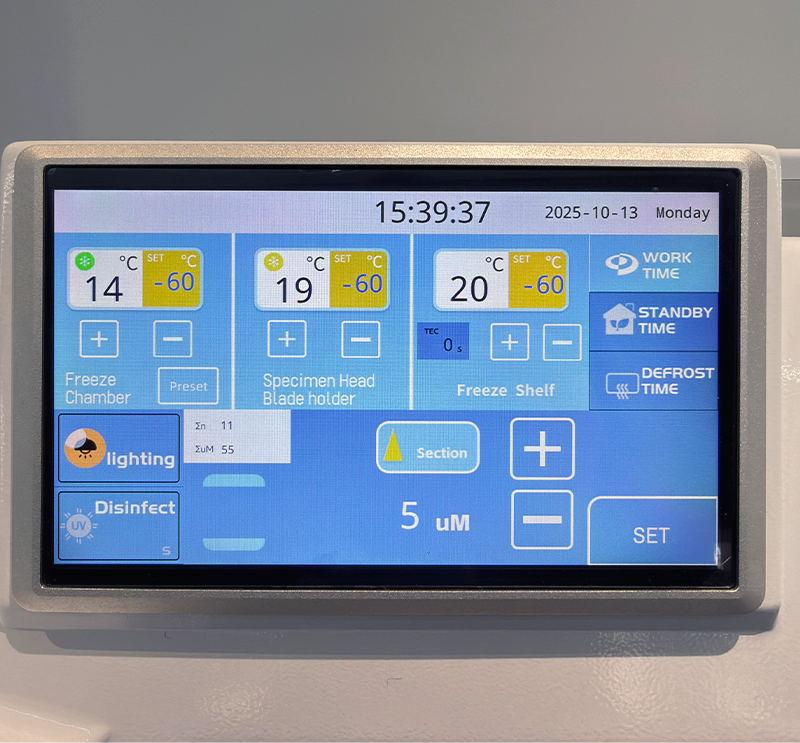

10.1-inch Color LCD Touchscreen -- Intuitive control with clear display of all parameters: slice count, thickness, temperature, time, and humidity.
Multi-Language Support -- Interface available in Chinese, English, Russian, Spanish, and Portuguese for diverse laboratory environments.
One-Touch Memory Function -- The specimen head automatically returns to the optimal start position, reducing manual adjustment and accelerating workflow.
Slice Mode Recognition -- Supports full and half blade modes with automatic recognition, simplifying blade changeovers.
Motorized Advance -- Two-speed motorized specimen advance (1.8 mm/s and 0.45 mm/s) for precise positioning.
4. Enhanced Safety & Hygiene

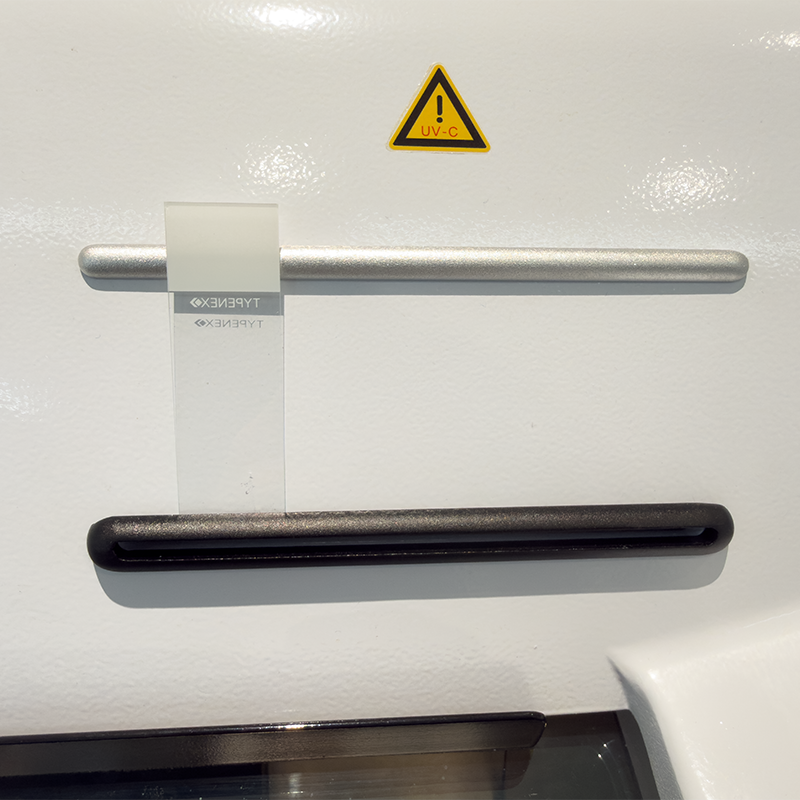

UVC Ultraviolet Disinfection -- Built-in UVC lamp effectively inhibits bacterial and mold growth in the chamber between procedures.
Seamless Stainless Steel Interior -- Nano-coated chamber with seamless construction prevents nitrogen leakage, inhibits microbial regeneration, and allows easy cleaning and decontamination.
Full-Length Knife Guard -- Retractable guard covering the entire blade edge plus a blue knife advancer for comprehensive operator protection during sectioning.
Double-Layer Removable Freezing Table -- Prevents frost buildup and simplifies maintenance; color-coded specimen trays for easy tissue type identification.
External Mechanical System -- Located outside the freezing chamber to protect precision components from ice crystal damage, allowing immediate on/off operation.
5. Ergonomic & Practical Design
Refrigerated Anti-Stick Tissue Flattener -- Cooled to -50 °C, facilitating faster, easier sample freezing without tissue adhesion.
Single-Pane Heated Glass Window -- Prevents condensation for a permanently clear view of the sectioning process.
Liquid Nitrogen Management System -- With level monitoring and alarm for uninterrupted cryogenic workflows.
USB / TF Card Interface -- For data export, software updates, and instrument parameter backup.
Rubber Base with Waste Container -- Integrated waste management for a cleaner, more organized workspace.
Application Scenarios
| Scenario | How It Supports |
|---|---|
| Intraoperative Frozen Section | -65 °C Peltier freezing in 15 minutes. 0.5-100 µm sectioning with one-touch memory for rapid diagnostic slide preparation during surgery. |
| Hospital Pathology Department | Multi-language interface for diverse staff. Programmable sleep mode for energy efficiency between cases. UVC disinfection and nano-coated chamber for clinical hygiene standards. |
| Biomedical Research Laboratory | 5-point independent cooling for varied research protocols. 55x80 mm specimen capacity for large tissue blocks. USB data export for research documentation. |
| Teaching Hospital / Medical University | Intuitive 10.1-inch touchscreen reduces training time. External mechanical system for safe student operation. Multi-language support for international training programs. |
FAQ
How fast does the RD-2290 freeze samples?
The Peltier-assisted freezing table reaches -65 °C and can freeze standard tissue samples in approximately 15 minutes. The dual-compressor Secop system provides consistent cooling across 24 standard freezing points plus 6 Peltier points.
What section thickness range does the RD-2290 support?
The RD-2290 offers an ultra-wide sectioning range from 0.5 µm to 100 µm with adjustable increments of 0.5/1/2/5 µm. Trimming operates from 0 µm to 600 µm (5/10/50 µm increments). Specimen retraction is adjustable from 0-60 µm in 2 µm steps.
What languages does the touchscreen support?
The 10.1-inch color LCD touchscreen supports five languages: Chinese, English, Russian, Spanish, and Portuguese. The intuitive interface displays all key parameters -- slice count, thickness, temperature, time, and humidity -- simultaneously.
How does the UVC disinfection and chamber hygiene work?
The built-in UVC ultraviolet lamp provides effective disinfection between procedures. The freezing chamber features a seamless stainless steel interior with nano-coating that prevents nitrogen leakage, inhibits microbial growth, and allows easy wipe-down cleaning. The double-layer removable freezing table simplifies maintenance and prevents frost accumulation.
Need a High-Performance Cryostat for Your Pathology Lab?
The Roundfin RD-2290 features Secop dual-compressor cooling, Peltier-assisted -65 °C rapid freezing, 10.1-inch multi-language LCD touchscreen, 0.5-100 µm sectioning, UVC disinfection, and nano-coated stainless steel chamber. CE certified.
