Roundfin RD-2280 Cryostat
1. SECOP dual-compressor with closed freezer cover plate for efficient cooling
2. Chamber: 10°C to -60°C; Peltier shelf: -60°C in 15min
3. Sectioning: 0.5μm-100μm with intelligent temperature control
4. 10-inch color LCD screen with UV sterilization
5. 24 freezing stations + 8 Peltier points; max specimen 55mm × 80mm
6. CE, ISO 13485 certified, 1 year and whole lifetime technical support
Product Overview
ROUNDFIN RD-2280 Cryostat Microtome is a high-performance pathology sectioning device, designed for rapid pathology diagnostics and routine histology applications. It features advanced refrigeration technology, intelligent temperature control, and an ergonomic user-friendly design. With its ability to produce high-quality tissue sections quickly and efficiently, it is an ideal choice for hospitals, medical schools, and research institutions.

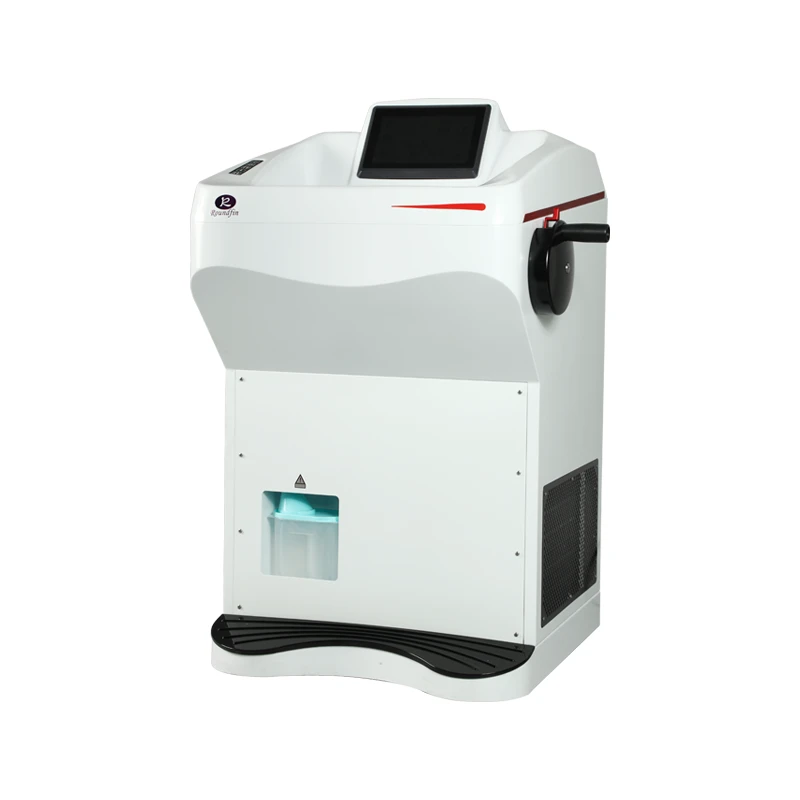

Figure 1 -- Roundfin RD-2280 Cryostat with 10-inch LCD screen, SECOP dual-compressor, and UV sterilization
Key Specifications
Compressor: SECOP Dual | Chamber: 10°C to -60°C | Peltier: -60°C (15min) | Display: 10-inch LCD | Cert: CE, ISO 13485
Technical Specifications
Sectioning & Movement
| Parameter | Specification |
|---|---|
| Section Thickness | 0.5μm-100μm (0.5/1/2/5um increments) |
| Trimming Range | 0-600um (5/10/50um increments) |
| Tissue Retraction | 0-100um (5um increment), can be disabled |
| Horizontal Stroke | 22mm |
| Vertical Stroke | 65mm |
| Max Specimen Size | 55mm × 80mm |
| Head Rotation | X-axis: 360 deg, Y-axis: 12 deg |
| Handwheel Lock | 360 deg arbitrary point locking |
| Motorized Advance | Two speeds: 0.9 mm/s, 0.45 mm/s |
Cooling & Freezing
| Parameter | Specification |
|---|---|
| Compressor | SECOP dual-compressor (international brand) |
| Freezing Chamber | 10°C to -60°C |
| Freezing Shelf | 0~-60°C |
| Peltier Shelf | -60°C (reached in 15min) |
| Freezing Stations | 24 total, 8 semiconductor refrigeration points |
| Sleep Mode | Maintains -5 to -15°C; restores slicing temp within 15 minutes |
| Anti-Stick Tissue Flattener | Refrigerated, down to -50°C |
General
| Parameter | Specification |
|---|---|
| Display | 10-inch color LCD screen |
| Disinfection | UV sterilization |
| Lighting | High-brightness low-power LED |
| Window | Heated glass, anti-condensation |
| Noise Level | 47db(A) |
| Power | 600W |
| Voltage | AC 220V±10% 50Hz / AC 110V±10% 60Hz |
| Dimensions (W x D x H) | 700mm × 760mm × 1160mm mm |
| Weight | 210KG |
| Certification | CE, ISO 13485 |
| Warranty | 1 year and whole lifetime technical support |
| OEM Support | Accept OEM |
Key Features
Efficient Cooling
Closed Freezer Cover Plate -- Ensures cold retention in the cooling station.
Dual Compressor System -- Uses internationally renowned "SECOP" compressors to refrigerate the chamber, knife holder, specimen clamp, and tissue flattener.
Energy-Saving Sleep Mode -- Maintains temperature between -5°C and -15°C during dormancy and restores slicing temperature within 15 minutes.
Automatic Defrosting -- Supports timed sleep switch with both manual and automatic defrosting functions.
Precision Cutting
Intelligent Temperature Control -- Self-testing temperature sensor automatically detects working status.
Accurate Specimen Movement -- Vertical stroke of 72mm and horizontal stroke of 22mm, allowing larger samples to be sectioned.
Specimen Retraction Function -- Prevents accidental damage to the specimen by the blade, with an option to disable it.
Anti-Stick Tissue Flattener -- Equipped with a refrigeration function, reaching temperatures as low as -50°C for faster freezing and improved efficiency.
Safety & Convenience
Full-Length Knife Guard -- Equipped with a blue blade pusher and a protective cover for enhanced user safety.
Large Quick-Freezing Shelf -- Allows preparation of up to 24 specimens simultaneously, improving workflow efficiency.
360° Handwheel Positioning -- Supports locking at any point for stable and precise operation.
Heated Glass Window -- Effectively prevents condensation for clear visibility.
UV Sterilization -- Includes a built-in cleaner to quickly collect waste inside the chamber, ensuring a hygienic working environment.
Smart Display & Illumination
10-Inch Color LCD Screen -- Clearly displays all user settings and specifications for easy operation.
High-Brightness, Low-Power LED Light -- Provides stable and bright illumination while being energy-efficient and long-lasting.
Low-Noise Operation -- Operating noise is less than 47 decibels, creating a quiet and comfortable workspace.
Application Scenarios
| Scenario | How It Supports |
|---|---|
| Intraoperative Frozen Section | -60°C Peltier shelf reaching temperature in 15min. 0.5μm-100μm sectioning for rapid diagnostic slides during surgery. |
| Hospital Pathology Department | 10-inch LCD screen with clear parameter display. Sleep mode for energy efficiency. UV sterilization and auto defrosting for clinical hygiene. |
| Research Laboratory | SECOP dual-compressor for precise temperature stability. Anti-stick tissue flattener. 55mm × 80mm capacity for large research samples. |
| Medical University / Teaching Hospital | Full-length knife guard for student safety. Intuitive LCD interface. 47db(A) low-noise operation for teaching environment. |
FAQ
What compressor system does the RD-2280 use?
The RD-2280 is equipped with a SECOP dual-compressor system, an internationally recognized brand. The compressors independently cool the freezing chamber (10°C to -60°C), knife holder, specimen clamp, and tissue flattener (down to -50°C).
What section thickness range does the RD-2280 support?
The RD-2280 offers a sectioning range of 0.5μm-100μm with adjustable increments (0.5/1/2/5um). The trimming range is 0-600um (5/10/50um increments). Specimen retraction is adjustable from 0-100um in 5um steps and can be disabled.
How does the sleep mode and automatic defrosting work?
The energy-saving sleep mode maintains the chamber between -5°C and -15°C during idle periods and restores the slicing temperature within 15 minutes. The timed sleep switch supports both manual and automatic defrosting, significantly reducing maintenance downtime.
What safety features does the RD-2280 include?
The RD-2280 is equipped with a full-length knife guard with a blue blade pusher, UV sterilization, heated glass anti-condensation window, and a 360-degree handwheel with arbitrary point locking for stable and safe operation.
