Roundfin RD-1301 Tissue Processor
1. 7-inch color LCD touch screen with human-machine interaction for easy operation
2. Stores 20 editable programs; 14 cups (10 reagent + 4 paraffin)
3. Multiple capacities: 4 options from 1000ml to 3500ml (60-240 specimens)
4. Temperature: 0°C~99°C; triple-protection sewage heating with precise control
5. Power-off memory (6 hours); delayed start up to 1 year; green air purification system
6. Advanced specimen protection; automatic reset & positioning; CE; ISO 13485 certified
Product Overview
The Roundfin RD-1301 is an advanced linear automatic tissue processor designed for histology and pathology laboratories requiring flexible, high-reliability tissue dehydration, clearing, and paraffin infiltration. Featuring a 7-inch color LCD touch screen with intuitive human-machine interaction, 20 editable programs, and a 14-cup linear design (10 reagent cups + 4 paraffin cups), the RD-1301 delivers precise, programmable tissue processing with comprehensive specimen protection and intelligent automation.
Available in multiple capacity configurations -- 1000ml: 60 specimens specimens; 1500ml: 90 specimens specimens; 2000ml: 120 specimens specimens; 3500ml: 240 specimens specimens -- the RD-1301 adapts to laboratories of any throughput. The fully intelligent design includes automatic abnormality detection and recovery, triple-protection sewage heating with precise temperature control (0°C~99°C), a green internal circulation air purification system, delayed start function (up to 1 year, adjustable by year/month/day/hour/minute/second), and power-off memory that resumes operation according to the original program for up to 6 hours after power recovery. An advanced specimen protection system ensures the basket remains in the liquid tank under all circumstances. Also available in a 2-basket variant for higher throughput. CE; ISO 13485 certified.

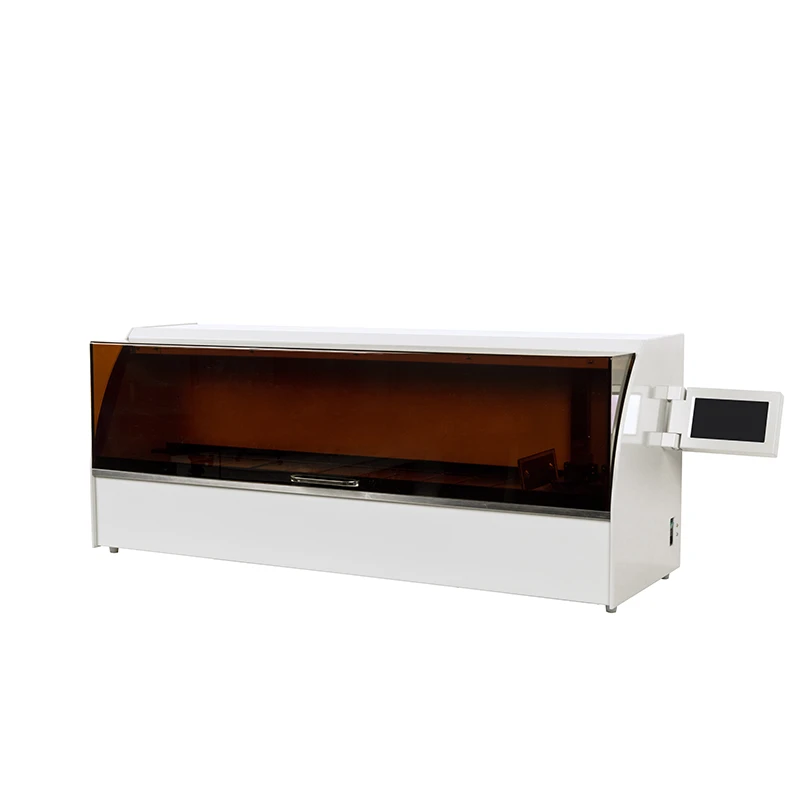

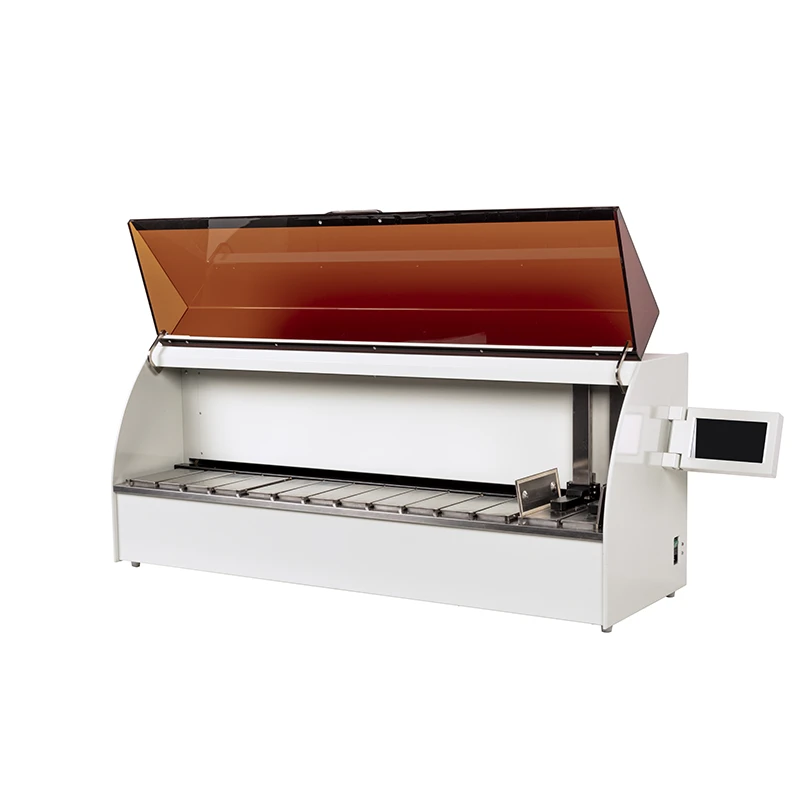

Figure 1 -- Roundfin RD-1301 Tissue Processor with 7-inch color LCD touch screen and 14-cup linear design
Key Specifications
Display: 7-inch Color LCD Touch | Cups: 14 (10 Reagent + 4 Paraffin) | Programs: 20 Editable | Temp: 0°C~99°C | Power-Off Memory: 6 Hours | Cert: CE; ISO 13485
Technical Specifications
1-Basket Model
| Parameter | Specification |
|---|---|
| Model | RD-1301 |
| Display | 7-inch color LCD touch screen |
| Cups | 14 (10 reagent + 4 paraffin) |
| Capacity Options | 1000ml (60 specimens); 1500ml (90); 2000ml (120); 3500ml (240) |
| Programs | 20 editable programs |
| Temperature Range | 0°C~99°C |
| Cylinder Working Time | 0-99h adjustable per station |
| Liquid Shaking | 0-6 adjustable times, 0-60s adjustable each (adjustable) |
| Agitation | 3 times/min (grid); 1 time/min (battery backup) |
| Tissue Protection | 7th station -- basket stays in liquid under all conditions |
| Power-Off Memory | Up to 6 hours, resumes from original program |
| Max Delayed Start | Up to 1 year (adjustable by year/month/day/hour/min/sec) |
| Air Purification | Green internal circulation system; adsorbs and removes toxic gases |
| Working Environment | 5-30°C, humidity ≤80% |
| Power Supply | AC220V±22V 50Hz±1Hz |
| Certification | CE; ISO 13485 |
| Warranty | 1 year and whole life technology support |
| OEM / ODM | OEM accepted; ODM negotiable |
2-Basket Model (Also Available)
The RD-1301 is also available in a 2-basket configuration for higher throughput: 1500ml (180 specimens: 90x2) or 2000ml (240 specimens: 120x2). The 2-basket model features dual protection stations (5th and 7th) and adjustable liquid shaking (0-99 times, 0-60s each). Contact our team for 2-basket model pricing and specifications.
Key Features

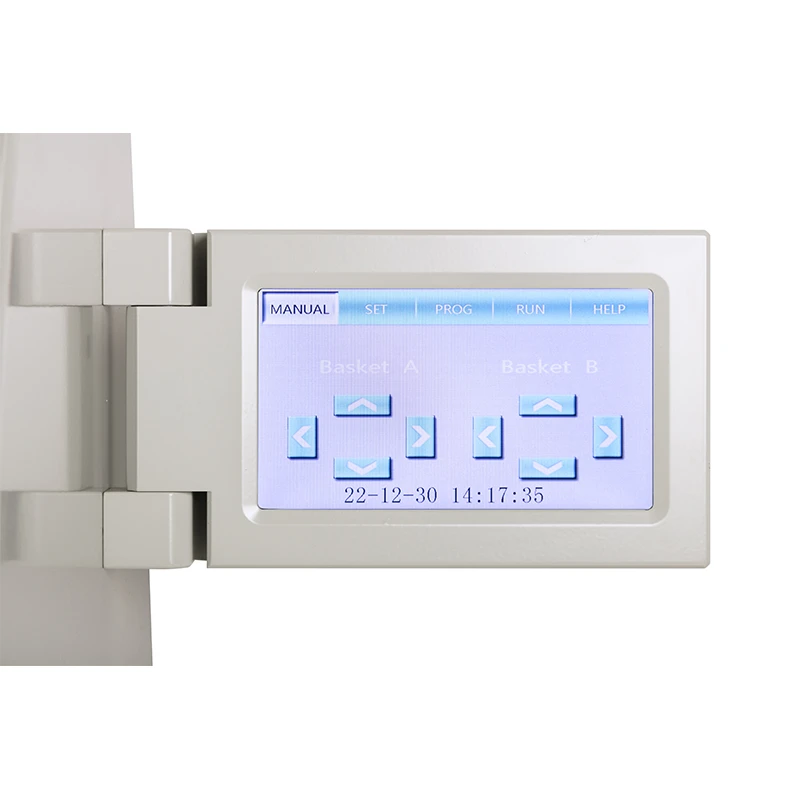

- 7-inch Color LCD Touch Screen -- Intuitive human-machine interaction displays all processing parameters. 20 editable programs for flexible dehydration schemes across different specimen types.
- Fully Intelligent Design -- Automatically detects and recovers from abnormalities in real time, protecting valuable tissue specimens from processing errors or equipment malfunctions.
- Triple-Protection Sewage Heating -- Precise temperature control (0°C~99°C) with triple-protection heating system. Free from water vapor hazards, ensuring stable and safe paraffin temperature maintenance.
- Green Air Purification System -- Internal circulation purification efficiently adsorbs and removes toxic gases from formaldehyde, xylene, and other processing reagents, protecting laboratory personnel health.
- Extended Delayed Start -- Program processing to start at any time within 1 year with precision adjustment down to the second (year/month/day/hour/minute/second). Ideal for holiday and weekend scheduling.
- 6-Hour Power-Off Memory -- In the event of a power interruption, resumes operation according to the original program for up to 6 hours after power recovery -- no reprogramming or sample loss.

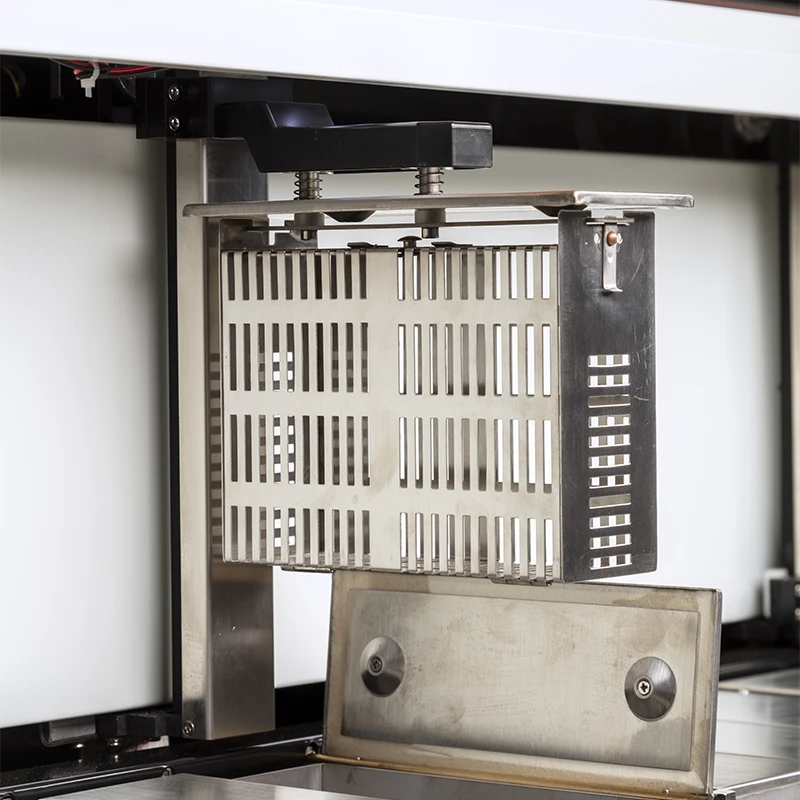

- Advanced Specimen Protection -- The basket is engineered to remain submerged in the liquid tank under all circumstances (power failure, mechanical fault), preventing specimen desiccation from air exposure.
- Automatic Reset & Positioning -- Self-calibrating cylinder positioning eliminates errors and ensures precise station alignment after each processing cycle.
- Dual Basket Option -- Upgrade to the 2-basket configuration for up to 240 specimens per batch, with independent liquid shaking control (0-99 times, 0-60s each).
Application Scenarios
| Scenario | How It Supports |
|---|---|
| Hospital Histology Lab | 20 programmable protocols for standardized diagnostics. 6-hour power-off memory protects overnight runs. 3500ml model handles 240 specimens for high-volume throughput. |
| Reference / Research Laboratory | Intelligent abnormality detection protects irreplaceable research specimens. Delayed start up to 1 year for long-term scheduling. Adjustable liquid shaking for diverse tissue types. |
| Veterinary Pathology | Multiple capacity options (1000-3500ml) for flexible throughput. Green air purification essential for labs processing formalin-fixed animal tissues. |
| Medical University / Teaching Hospital | Intuitive 7-inch touch screen ideal for student training. 20 programmable protocols for teaching standardized techniques. Automatic reset simplifies multi-user environments. |
FAQ
What capacity options are available for the RD-1301?
The 1-basket model is available in four capacity configurations: 1000ml (60 specimens), 1500ml (90 specimens), 2000ml (120 specimens), and 3500ml (240 specimens). The 2-basket model offers 1500ml (180 specimens: 90x2) or 2000ml (240 specimens: 120x2). Specify your preferred capacity when requesting a quotation.
What happens if power fails during processing?
The RD-1301 features 6-hour power-off memory. If power is restored within 6 hours, the processor automatically resumes operation according to the original program at the exact position where it stopped. The advanced specimen protection system ensures the basket remains submerged in the liquid tank during the power interruption, preventing specimen drying.
How does the air purification system work?
The RD-1301 is equipped with a green internal circulation air purification system that efficiently adsorbs and removes toxic gases (formaldehyde, xylene, alcohol vapors) generated during tissue processing. Combined with the triple-protection sewage heating system, it maintains a safer laboratory environment for personnel.
How long can the delayed start be set for?
The RD-1301 supports an exceptionally flexible delayed start of up to 1 year, adjustable by year, month, day, hour, minute, and second. This exceeds most competitors' 30-day or 1-month limits, making it ideal for laboratories that need to schedule processing around holidays, equipment rotation, or long-term experimental protocols.
Need a High-Reliability Linear Tissue Processor?
The Roundfin RD-1301 features a 7-inch LCD touch screen, 20 editable programs, 14-cup linear design, 4 capacity options (60-240 specimens), 0°C~99°C temperature control, 6-hour power-off memory, delayed start up to 1 year, green air purification, and advanced specimen protection. Also available in 2-basket configuration. CE; ISO 13485 certified with 1 year and whole life technology support.
Request a quotation: Contact our histopathology equipment team -- reply within 12 hours.
