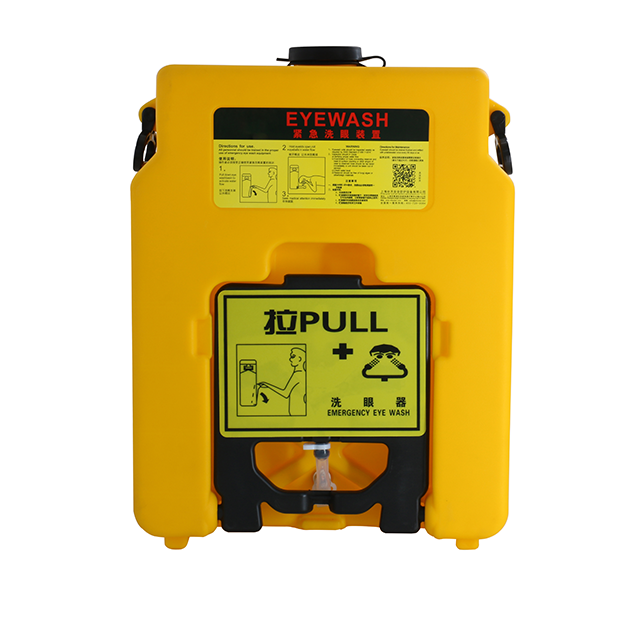

Roundfin BTB53 14 Gallon/53L Portable Eyewasher
1. High-capacity 14-gallon (53 L) PE tank — the largest portable eyewash in the Roundfin range for extended flush duration, multi-casualty capability, and reduced maintenance refill frequency
2. High-quality non-toxic PE construction with UV-stabilized tank and carbon steel bracket with ABS anticorrosive coating (optional SS304 or SS316L)
3. ANSI Z358.1-2014 compliant — minimum 1.5 L/min flow rate for a full 15-minute flush with significant reserve capacity for multiple consecutive activations
4. Twin aerated spray heads with flip-top dust covers protect nozzles and automatically open upon water flow; push-plate activation for hands-free operation
5. Wide-mouth fill opening with tethered cap and integrated drain plug for efficient water changes and complete tank draining during scheduled maintenance
6. Wall-mountable bracket included with high-visibility green emergency signage; CE marked and ISO 13485 certified for workplace safety compliance
Product Overview
The Roundfin BTB53 Portable Eyewasher is a high-capacity 14-gallon (53 L) gravity-fed emergency eye irrigation station — the largest portable eyewash in the Roundfin product range. Designed for industrial facilities, large laboratories, and high-traffic hazard areas where multiple potential casualties or extended emergency response times demand greater water reserves, the BTB53 delivers ANSI Z358.1-2014 compliant flow rates for a full 15-minute flush with significant reserve capacity. The high-quality non-toxic PE tank with UV-stabilized construction ensures long service life in indoor and sheltered outdoor environments.
Roundfin BTB53 14 Gallon/53L Portable Eyewasher — High-Capacity Emergency Eye Wash
Key Takeaway: Roundfin BTB53 Portable Eyewasher — ANSI Z358.1-2014 compliant emergency eyewash equipment. CE marked, ISO 13485 certified. Available in portable and plumbed configurations for laboratories, industrial facilities, and healthcare environments. Worldwide shipping.
Technical Specifications
| Parameter | Specification |
|---|---|
| Tank Capacity | 14 gallons / 53 liters — largest portable eyewash in Roundfin range |
| Tank Material | High-quality non-toxic polyethylene (PE); UV-stabilized |
| Bracket Material | Carbon steel with ABS anticorrosive coating; optional SS304 or SS316L |
| Mounting | Wall-mounted bracket (included); installation hardware provided |
| Flow Rate | Minimum 1.5 L/min per ANSI Z358.1-2014 |
| Flush Duration | Full 15-minute continuous flush with significant reserve capacity for multiple consecutive activations |
| Activation | Push-plate; hands-free stay-open operation |
| Certifications | CE marked; ISO 13485; ANSI Z358.1-2014 compliant |
Key Features
- Largest Capacity — 14 Gallons / 53 Liters — The highest-capacity portable eyewash in the Roundfin range; provides full ANSI-compliant 15-minute flush with ample reserve for multiple consecutive activations or extended flush duration when emergency response is delayed.
- Reduced Maintenance Frequency — Larger tank capacity means fewer water changes are required compared to smaller portable units; the 53 L reservoir provides adequate water for weekly activation tests over an extended interval before refilling is needed.
- Multi-Casualty Ready — Sufficient water reserve for multiple consecutive eyewash activations in the event of a chemical splash incident affecting more than one person — critical for laboratories, chemical processing areas, and industrial sites with multiple workers in the hazard zone.
- Push-Plate Hands-Free Activation — Simple push motion activates the eyewash and locks the valve in the open position; user's hands are free to hold eyelids open for thorough irrigation of both eyes simultaneously.
- High-Visibility Emergency Identification — Wall-mountable bracket with included green ANSI-compliant emergency eyewash sign ensures rapid identification and access within the 10-second travel distance per ANSI Z358.1-2014.
- Complete Installation Kit Included — Wall-mounting bracket, installation hardware, and emergency signage supplied; unit can be wall-mounted in under 30 minutes with basic hand tools and a drill.
FAQ
How often do I need to change the water in the BTB53?
If using tap water without preservative: every 1-2 weeks maximum. The larger 53 L tank means more water to change, but the interval is the same as smaller portable units — stagnant water can support bacterial growth regardless of volume. If using factory-sealed preservative eyewash solution cartridges or bottled sterile saline, follow the manufacturer's expiration date (typically 3-6 months). Always record water changes in the eyewash station maintenance log with date, type of water/solution used, and inspector's name.
Is the BTB53 too heavy to wall-mount safely?
When filled with 53 L of water, the BTB53 weighs approximately 58 kg (128 lb) — substantial but within the load capacity of a properly installed wall bracket into wall studs or a masonry wall with appropriate anchors. The mounting bracket and hardware are engineered for the filled weight with a safety factor. Installation must be into structural wall framing or a reinforced wall section — never into drywall alone. If wall mounting is not feasible, contact Roundfin for a floor-stand adapter option.
What is the advantage of the BTB53 over the BTB30-2/BTB60-2?
The BTB53 (53 L) provides approximately 2x the capacity of the BTB30-2 (30 L) — more reserve for multi-casualty incidents and extended flush duration. It also allows a longer interval between water changes if weekly activation tests consume a significant proportion of a smaller tank's volume. Choose the BTB53 for: high-traffic industrial areas with multiple workers, locations where emergency medical response exceeds 15 minutes, and sites where weekly water changes of smaller units are logistically burdensome.
Can the BTB53 be used with a floor stand instead of wall mounting?
Yes. While the standard configuration includes a wall-mounting bracket, a floor-stand adapter is available from Roundfin for installations where wall mounting is not feasible — for example, in the middle of a large open laboratory, beneath low ceilings, or on partition walls without structural framing. The floor stand provides a stable free-standing pedestal rated for the filled BTB53 weight. Contact Roundfin to order the optional floor stand with your BTB53 eyewash station.
