Roundfin XH-2002 Compact Slide Dryer
1. Flat heating surface for uniform drying of 23pcs slides
2. Temperature: Room Temp-70°C
3. Ultra-compact footprint: L260×W200×H85 mm, only 5kg
4. Low power consumption: 100W
5. Simple, clean design for individual workstations
6. Dual voltage: AC 230V/50Hz or AC 120V/60Hz
Product Overview
The Roundfin XH-2002 is an ultra-compact benchtop slide dryer designed for small histology laboratories, individual pathologist workstations, and teaching environments where bench space is at a premium. Featuring a flat heating surface with a capacity of 23pcs standard microscope slides, the XH-2002 delivers uniform drying of mounted tissue sections in the smallest possible benchtop footprint -- just L260×W200×H85 mm and weighing only 5kg.
With a temperature range of Room Temp-70°C, low 100W power consumption, dual voltage support (AC 230V/50Hz or AC 120V/60Hz), and a clean, minimalist design, the XH-2002 is the most space-efficient and economical slide drying solution in Roundfin's histology product line -- ideal for small clinics, satellite labs, veterinary pathology, and individual research workstations.

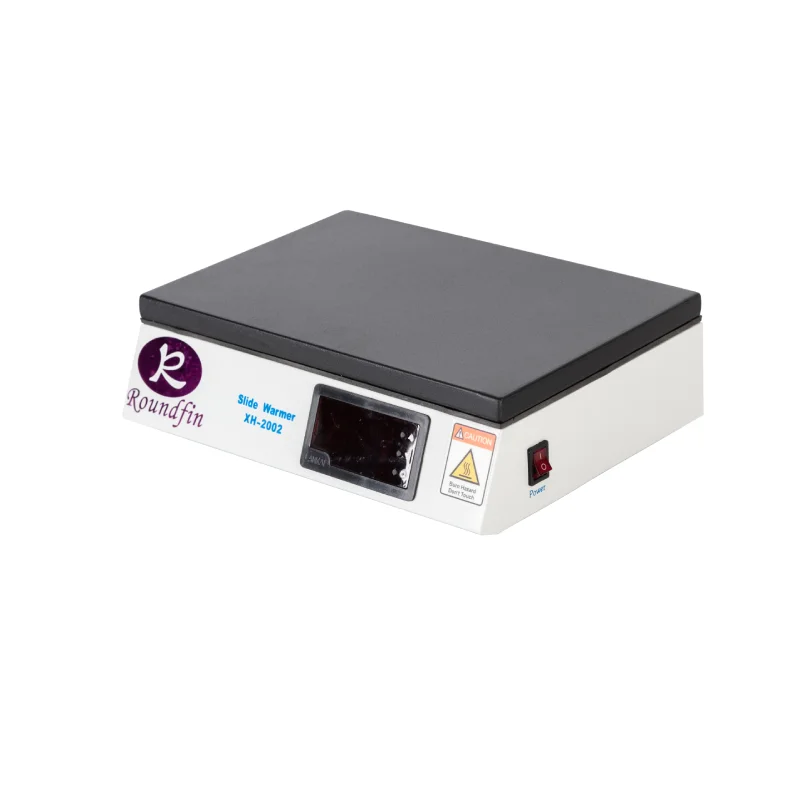

Figure 1 -- Roundfin XH-2002 Compact Slide Dryer with flat heating surface, 23pcs slide capacity in an ultra-compact footprint
Key Specifications
Capacity: 23pcs | Temperature: Room Temp-70°C | Footprint: L260×W200×H85 mm | Weight: 5kg | Power: 100W
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XH-2002 |
| Type | Compact Slide Dryer |
| Capacity | 23pcs |
| Temperature Range | Room Temp-70°C |
| Heating Surface | Flat surface for uniform heat distribution |
| Power | 100W |
| Voltage | AC 230V/50Hz or AC 120V/60Hz |
| Working Temperature | 5°C-40°C |
| Relative Humidity | <80% |
| Product Dimensions | L260×W200×H85 mm (L x W x H) |
| Weight | 5kg |
| Power System | AC |
Key Features
- Ultra-Compact Footprint -- Just L260×W200×H85 mm and 5kg, the XH-2002 fits on the smallest lab bench, inside a fume hood, or on an individual pathologist's workstation where space is limited.
- Flat Heating Surface -- Uniform heat distribution ensures consistent drying across all 23pcs slides without hot spots that could damage delicate tissue sections.
- Low Power Consumption -- Only 100W power draw, making it energy-efficient and suitable for facilities with limited electrical capacity or solar-powered installations.
- Simple and Clean Design -- Minimalist construction with no unnecessary complexity. Easy to operate, easy to clean, and virtually maintenance-free.
- Dual Voltage Support -- Available in AC 230V/50Hz (Europe, Asia, Africa, Middle East) and AC 120V/60Hz (North America). Specify when ordering.
- Economical Entry-Level Solution -- The most affordable slide dryer in Roundfin's product line, ideal for small clinics, teaching labs, and facilities with modest throughput requirements.
XH-2002 Compared with Other Roundfin Slide Dryers
| Model | Capacity | Footprint | Power | Best For |
|---|---|---|---|---|
| XH-2002 | 23 slides | 260x200x85 mm | 100W | Small clinics, individual workstations, teaching |
| XH-2001 | 66 slides | 640x230x100 mm | 200W | Standard-throughput histology labs |
| RD-81 | 63 slides | 327x340x166 mm | 200VA | High-throughput with touch screen & timer |
Application Scenarios
| Scenario | How It Supports |
|---|---|
| Individual Pathologist Workstation | Ultra-compact 260x200 mm footprint fits beside a microtome on a single bench for a complete sectioning-to-drying personal workflow. |
| Small Clinic / Satellite Lab | 23pcs slide capacity matches the daily throughput of a small diagnostic lab. 100W low power draw suits facilities with limited electrical infrastructure. |
| Medical College / Teaching Lab | Affordable entry-level unit for student training. Simple operation means less supervision needed; compact size allows multiple units per lab bench. |
| Veterinary Pathology | Size and capacity well-matched to veterinary practices processing fewer daily cases. Dual voltage for global compatibility. |
FAQ
How many slides can the XH-2002 hold?
The XH-2002 accommodates up to 23pcs standard microscope slides (25 mm x 75 mm) on its flat heating surface. This capacity is designed for individual workstations and small labs with modest daily throughput.
How does the XH-2002 differ from the XH-2001?
The XH-2002 is an ultra-compact model with 23pcs slide capacity, L260×W200×H85 mm footprint, and 100W power -- ideal for individual workstations and small labs. The XH-2001 is a full-size model with 66 slide capacity, 640x230x100 mm footprint, and 200W power -- better suited for standard-throughput histology laboratories.
What voltage options are available?
AC 230V/50Hz (standard for Europe, Asia, Africa, Middle East) or AC 120V/60Hz (North America). Specify your voltage when ordering.
Is the XH-2002 suitable for a high-throughput hospital lab?
The XH-2002 is designed for low to moderate throughput (23pcs slides per batch). For higher volumes, consider the XH-2001 (66 slides), XH-2003 (66 slides), or RD-81 (63 slides with touch screen control and programmable timer).
Need a Compact Slide Dryer for Your Workstation?
The Roundfin XH-2002 is our most space-efficient slide dryer -- just L260×W200×H85 mm, 5kg, 100W. Ideal for individual pathologist workstations, small clinics, and teaching labs. Dual voltage for global compatibility.
Request a quotation: Contact our team -- reply within 12 hours.
