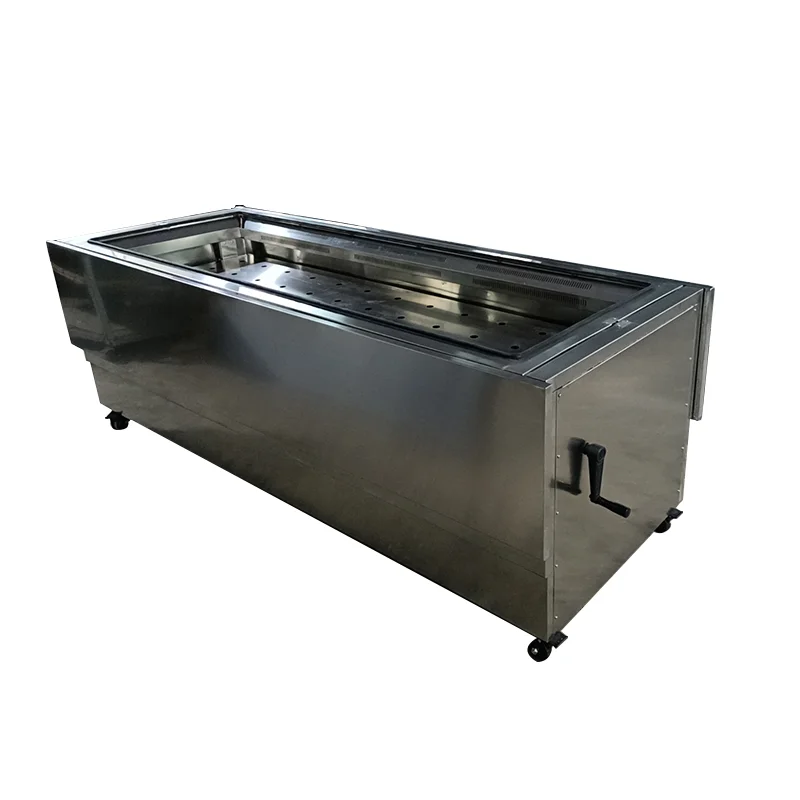

Roundfin RD-200 Cadaver Body Tank Immersion Dissection Table
1. 304 stainless steel construction with fully welded and polished seams
2. Hand crank lifting system with removable tray for easy cleaning
3. 310 mm lifting height range for ergonomic working positions
4. Internal size: 2070 x 700 x 450 mm — suitable for cadaver immersion
5. 4 brake wheels with foot brake for mobility and stable positioning
6. CE/ISO certified with OEM/ODM customization accepted
Product Overview
The Roundfin RD-200 is a professional-grade cadaver body tank immersion dissection table designed for medical colleges, teaching hospitals, and forensic facilities. Constructed from 304-grade stainless steel with fully welded and polished seams, it features a hand crank lifting system with removable tray, 310 mm height adjustment range, and 4 foot-brake wheels for mobility. The RD-200 provides a versatile platform for both body preservation and dissection procedures.
Key Specifications at a Glance
Material: 304 Stainless Steel | Product Size: 2340 x 860 x 850 mm | Lifting: Hand Crank, 310 mm | Certification: CE/ISO
Custom Design Solutions Available
We provide tailored design proposals and accept full customization — dimensions, materials, configurations, and facility-specific integrations. OEM/ODM orders accepted.
Technical Specifications
| Model | RD-200 |
| Material | Stainless Steel 304 |
| Product Size | 2340 x 860 x 850 mm |
| Internal Size | 2070 x 700 x 450 mm |
| Tray Size | 1978 x 658 x 38 mm |
| Lifting Method | Hand crank, removable tray |
| Lifting Height | 310 mm |
| Wheels | 4 brake wheels with foot brake |
| Package | Plywood |
| Certification | CE/ISO |
| OEM/ODM | Yes |
| Welding | Fully welded and polished |
Key Features

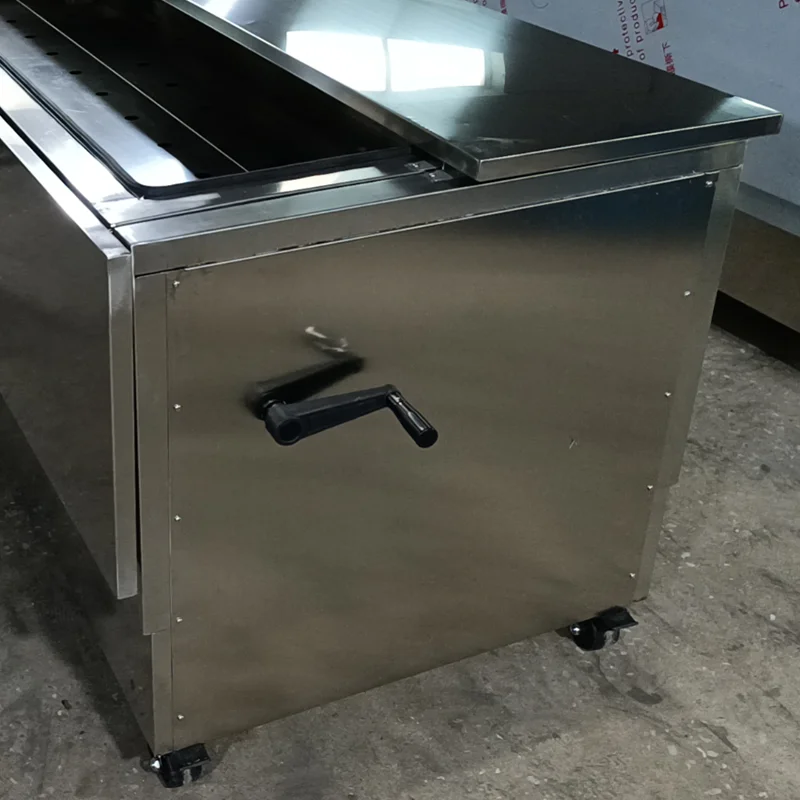

- Hand Crank Lifting System — Manual crank mechanism provides 310 mm of height adjustment for ergonomic working positions. No electrical connection required.

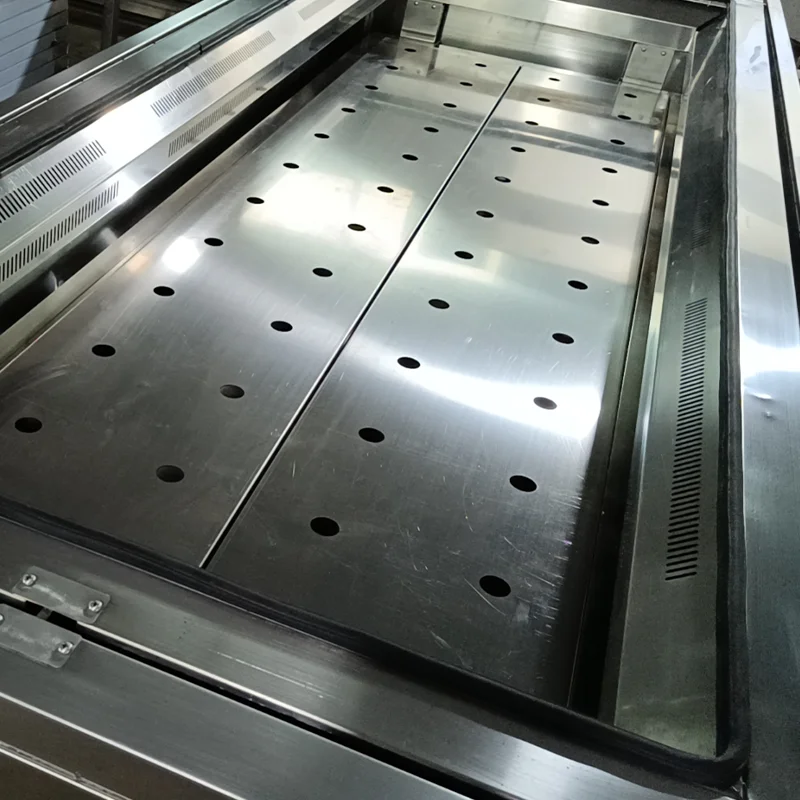

- Removable Tray Design — The inner tray (1978 x 658 x 38 mm) can be fully removed for easy cleaning and maintenance between procedures.
- Full 304 Stainless Steel Construction — Corrosion-resistant stainless steel with fully welded and polished seams ensures long-term durability in formaldehyde and reagent environments.
- Spacious Internal Dimensions — 2070 x 700 x 450 mm internal cavity accommodates standard cadaver immersion preservation requirements.
- 4 Foot-Brake Wheels — Heavy-duty casters with foot-operated brake mechanism provide stable positioning and easy mobility when needed.
- OEM/ODM Ready — Custom dimensions, materials, and configurations available to meet specific facility requirements.
FAQ
What is the RD-200 used for?
The RD-200 is a dual-purpose tank designed for both cadaver immersion preservation and dissection procedures in medical colleges, teaching hospitals, and forensic facilities.
How does the lifting mechanism work?
The RD-200 uses a manual hand crank lifting system with 310 mm of vertical travel. The tray can be removed entirely for cleaning. No electrical power is needed.
What is the tray size?
The removable inner tray measures 1978 x 658 x 38 mm, fitting within the 2070 x 700 x 450 mm internal cavity.
Can the RD-200 be customized?
Yes. OEM/ODM customization is accepted for dimensions, material upgrades (316 stainless steel), and additional features. Contact our engineering team.
