Roundfin RD-BM,BL Tissue Embedding Center with Cold Plate
1. Fully programmable computer control with weekly auto start/stop
2. 5 independently controlled heated areas with no mutual interference
3. Paraffin chamber: 3 liters, precise temperature control 55-70°C (±1%)
4. Cold plate: ≤ -20°C, cryo module 310 × 300mm mm
5. Automatic memory and restoration of all preset temperature data
6. Dual overheating protection; flexible modular configuration
Product Overview
The Roundfin RD-BM,BL is a professional tissue embedding center designed for histology and pathology laboratories. Featuring fully programmable computer controls with automatic system start and stop at any time during the week, five independently controlled heated areas (paraffin chamber, paraffin dispenser, left/right thermal storage compartments, and heating plate/working area) that operate without mutual interference, and a flexible modular configuration where the cryo module is separated from the embedding module for optional configuration, the RD-BM,BL offers versatile and reliable embedding workflow for routine diagnostic and research applications.
The paraffin chamber holds 3 liters with a temperature range of 55-70°C (±±1% precision). The flexible heating mechanism overcomes the shortcomings of traditional technology (excessive temperature differences), providing fast heating and precise temperature control. Dual overheating protection ensures safety, reliability, and energy efficiency. The cold plate operates at ≤ -20°C with a cryo module measuring 310 × 300mm mm. All preset temperature data are automatically stored in the system after startup via the automatic memory and restoration function. CE and ISO 13485 certified.

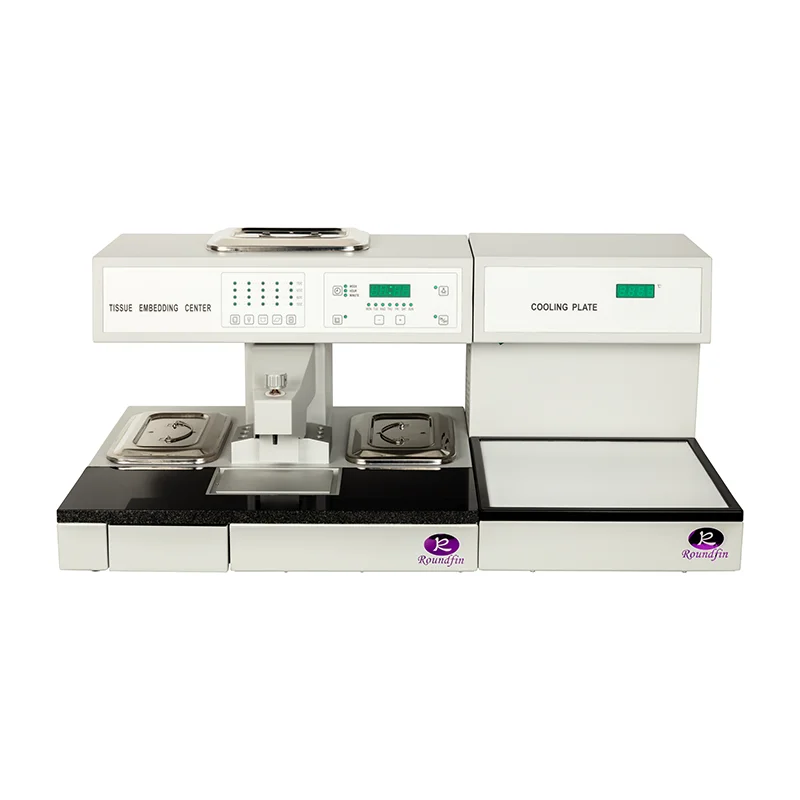

Figure 1 -- Roundfin RD-BM,BL Tissue Embedding Center with programmable controls and cold plate
Key Specifications
Control: Fully Programmable | Zones: 5 Independent | Paraffin: 3 liters (55-70°C) | Cold Plate: ≤ -20°C | Config: Modular (Embedding + Cryo)
Technical Specifications
Embedding Center (Heated Workspace)
| Parameter | Specification |
|---|---|
| Model | RD-BM,BL |
| Control | Fully programmable computer control with auto start/stop (weekly) |
| Heated Zones | 5 independently controlled areas with no mutual interference |
| Paraffin Chamber | 3 liters (228 × 148 × 90mm mm) |
| Temperature Range | 55-70°C (±1% precision) |
| Paraffin Flow | Finger touch plate and optional foot pedal |
| Memory Function | Automatic storage and restoration of all preset temperature data |
| Safety | Dual overheating protection |
| Power | 650W |
| Dimensions | 500 × 550 × 3860mm mm |
| Weight | 24kg |
Cold Plate (Cryo Module)
| Parameter | Specification |
|---|---|
| Temperature | ≤ -20°C |
| Power | 300W |
| Cryo Module Size | 310 × 300mm mm |
| Dimensions | 500 × 345 × 360mm mm |
| Weight | 27kg |
| Voltage | AC 220V±10% 50Hz / AC 110V±10% 60Hz |
| Configuration | Flexible modular — cryo module separated from embedding module |
Key Features
- Programmable Weekly Auto Start/Stop -- Fully programmable computer controls allow the system to automatically start and stop at any set time during the week. Pre-heat the 3 liters paraffin chamber before staff arrive and eliminate warm-up waiting time.
- 5-Zone Independent Temperature Control -- Paraffin chamber, paraffin dispenser, left and right thermal storage compartments, and heating plate/working area each have independent temperature settings and operate without mutual interference.
- Precise and Fast Heating -- Flexible heating mechanism overcomes excessive temperature differences found in traditional technology. Temperature range: 55-70°C with ±±1% precision. Dual overheating protection ensures safety and energy efficiency.
- Automatic Memory and Restoration -- All preset temperature data are automatically stored in the system after startup. In the event of a power interruption, settings are restored when power returns -- no reprogramming needed.
- Flexible Modular Configuration -- The cryo module is separated from the embedding module, allowing optional configuration. Position the cold plate (≤ -20°C) independently to suit your lab layout and workflow preferences.
- Heated Working Plate and Forceps Wells -- Heated work area with integrated forceps holders keeps instruments at optimal temperature for more convenient and efficient tissue embedding.
- Dual Voltage -- Standard AC 220V±10% 50Hz; AC 110V±10% 60Hz option available.
Application Scenarios
| Scenario | How It Supports |
|---|---|
| Hospital Histology Lab | Programmable weekly timer pre-heats the 3 liters chamber before shift start. 5-zone independent control for consistent routine embedding. Auto memory restores settings after power interruptions. |
| Research Institute | Modular configuration allows flexible bench arrangement for different research protocols. Dual overheating protection for safe long-duration experiments. |
| Medical College / Teaching Lab | Intuitive computer controls and auto memory function simplify operation for students. 24kg embedding unit is manageable for training environments. |
| Veterinary Pathology | Compact dimensions suit vet diagnostic labs. ≤ -20°C cold plate for rapid sample cooling. Dual voltage for global compatibility. |
FAQ
What is the difference between RD-BM,BL and RD-98?
The RD-BM,BL features fully programmable computer controls with weekly auto start/stop, 5 independent heated zones, 3 liters paraffin chamber, a ≤ -20°C cold plate, and a flexible modular configuration. The RD-98 offers a larger 6L paraffin chamber, 6.9-inch LED touch screen, 7 independent zones, and a cold plate with up to 70 embedded box capacity (-30°C to RT). Choose RD-BM,BL for modular flexibility and programmable convenience; choose RD-98 for higher throughput and advanced touch screen control.
How does the automatic memory function work?
All preset temperature data for the 5 heated zones are automatically stored in the system after startup. If power is interrupted, the system restores all previous settings when power returns -- no manual reprogramming required. This also applies to the weekly auto start/stop schedule.
Can the cold plate and embedding center be positioned separately?
Yes. The RD-BM,BL uses a flexible modular configuration where the cryo module (310 × 300mm mm) is separated from the embedding module (500 × 550 × 3860mm mm). This allows independent positioning on the laboratory bench to suit your preferred workflow direction and available space.
What safety features does the RD-BM,BL include?
The RD-BM,BL is equipped with dual overheating protection that prevents temperature excursions beyond safe limits. This protects both the tissue samples during embedding and the instrument itself. Combined with the automatic memory and restoration function, it ensures safe, uninterrupted operation even after power fluctuations.
Need a Programmable Tissue Embedding Center?
The Roundfin RD-BM,BL features fully programmable computer controls with weekly auto start/stop, 5-zone independent temperature control, 3 liters paraffin chamber, ≤ -20°C cold plate, and flexible modular configuration. CE and ISO 13485 certified.
